MACHINE AND ENGINE PLATES
Machine plate
PIN on frame

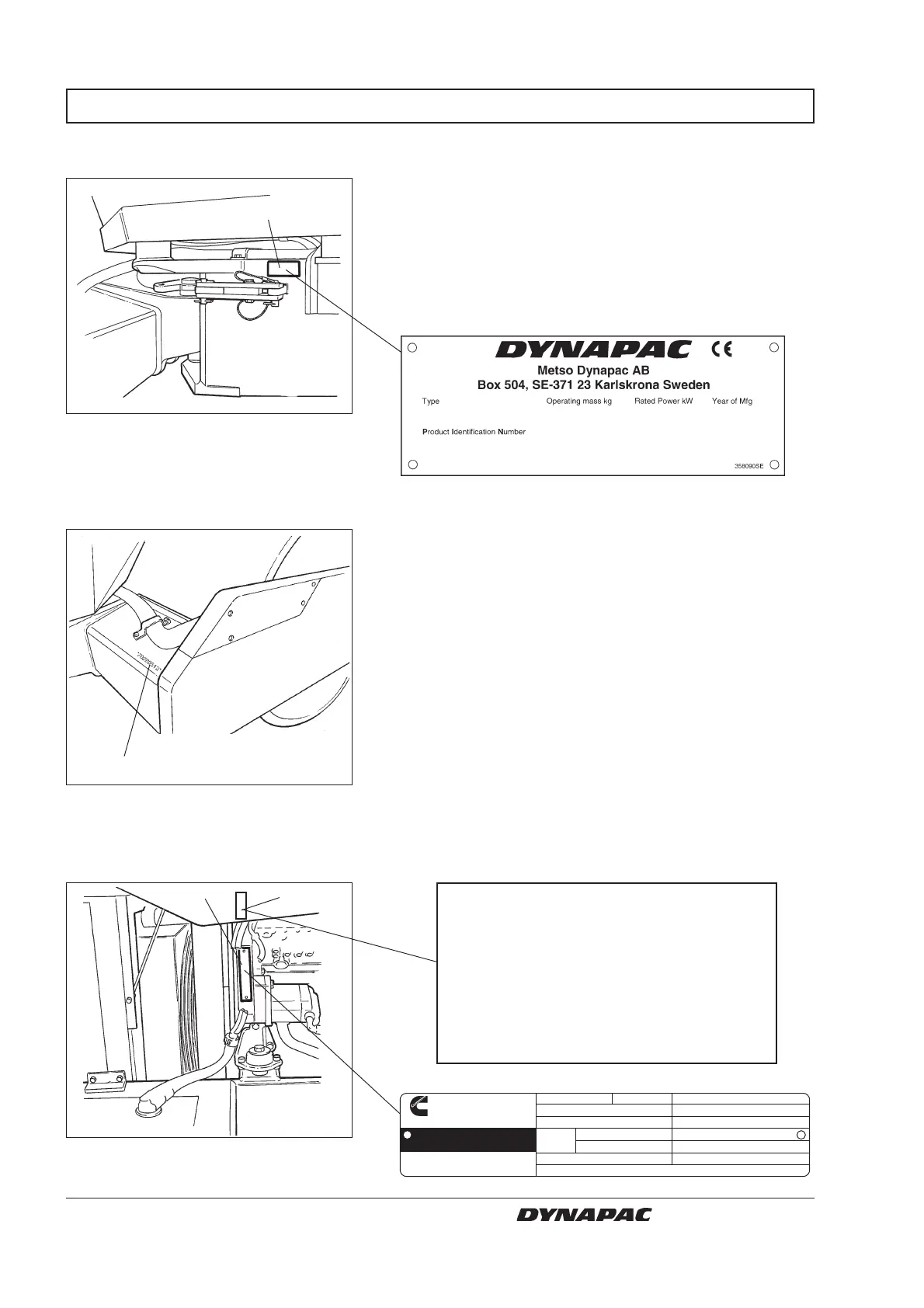

Fig. 4 Operator’s platform
1. Machine plate
Fig. 5 Front frame
1. PIN
Fig. 6 Engine
1. Engine plate
2. EPA sign (USA)
1
1
Engine plate
1
The engine plate (1) is affixed to the right side of the
engine under the injection pump. The plate indicates the
type of engine, serial number and engine data. Please
state the engine serial number when ordering spares.
See also the Engine Manual.
The machine plate (1) is affixed on the front left side of
the frame, by the steering joint. The plate shows the
manufacturer’s name and address, type of machine,
product identification number (PIN), weight in working
order, engine power and year of manufacture (the year
of manufacture is not specified if the machine is
delivered outside the EU).
Please state the roller PIN when ordering spares.
The PIN (1) of the machine is punched on the front right
edge of the forward frame beam.
IMPORTANT ENGINE INFORMATION
This engine conforms to YYYY U.S. EPA
and California Tier 2 regulations for
heavy duty non-road compression
ignition diesel cycle engines as
applicable.
THIS ENGINE IS CERTIFIED TO OPERATE
ON DIESEL FUEL
3939196
2
Cummins Engine Company, Inc
Columbus, Indiana
47202-3005
Warning Injury may result and warranty is voided
if fuel rate, rpm or altitude exceed published
maximum values for this model and application.
Date of MFG.
Made in Great Britain.
3284907
CID/L. CPL Engine Serial No.
Family Cust. Spec.
Engine Model
Valve lash Timing-TDCInch Int. Exh.
MM Int. Exh. Fuel rate at rated HPcold
#
Firing Order
Rated HP/KW at RPM
FR
