DRIVING
Under no circumstances may the machine
be operated from the outside. The operator
must remain seated inside the machine
during all operation.
Set the revs knob (23) at 2200 rpm.
Ensure that the steering is working properly by turning
the steering wheel once to the right and once to the left
while the roller is stationary.
Ensure that the area in front of and behind
the roller is clear.
Pull up the reserve/parking brake knob (37)
and check that the warning lamp for the
parking brake is out. When starting the
roller on a slope, be prepared that it may
begin to roll.
Driving the roller

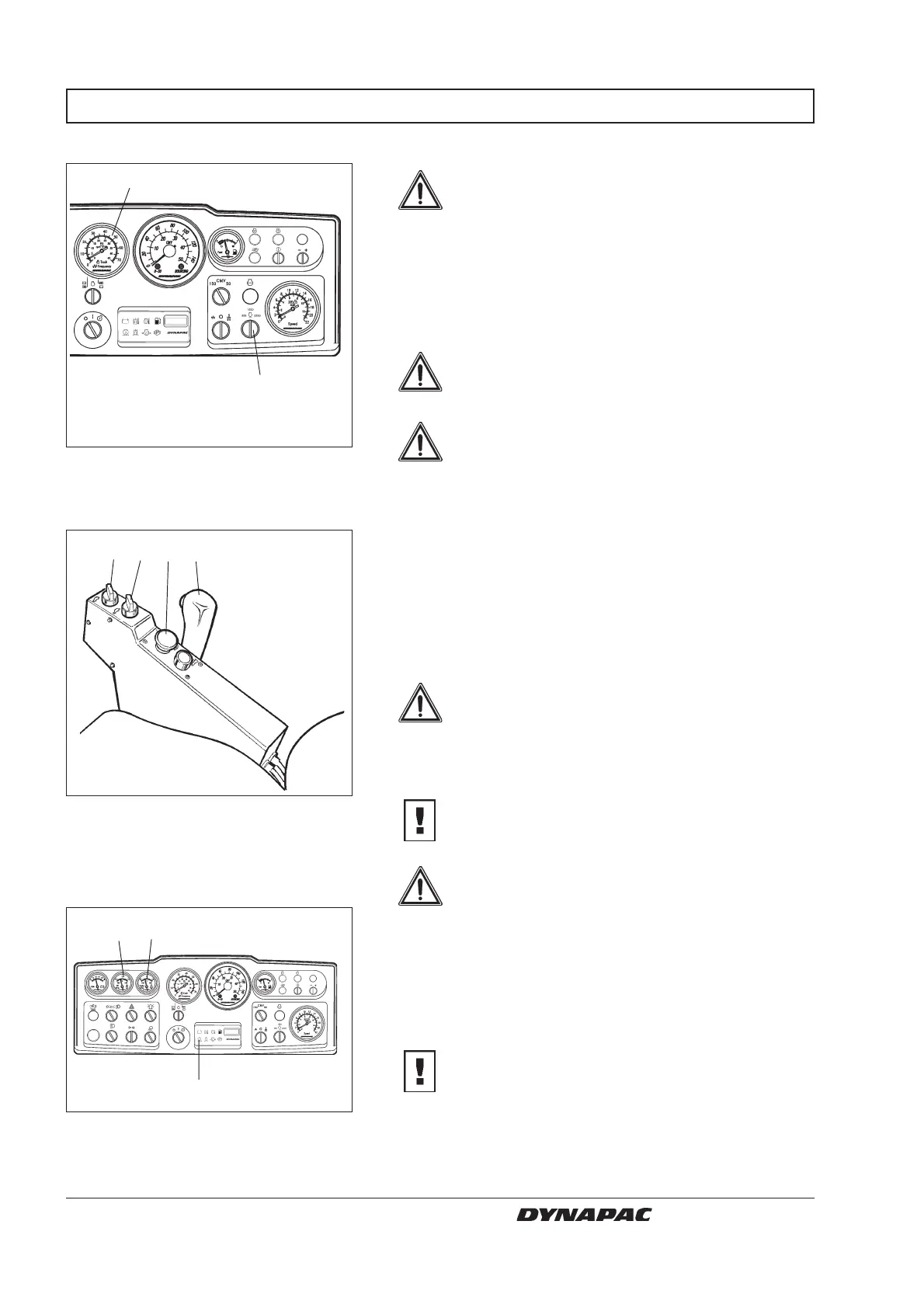

Fig. 21 Instrument panel
11. Temperature, hydraulic fluid (Optional)
12. Temperature, engine oil (Optional)
30. Warning lamp, air filter
Fig. 20 Control panel
35. Speed selector, drum (Optional)
36. Speed selector, rear axle
37. Reserve/parking brake knob
39. Forward/Reverse lever
Fig. 19 Instrument panel
13. Tachometer (Optional)
23. Revs control
35 36 37 39
11 12
Check now and then while driving that the gauges
show normal readings. In the event of abnormal values
or if the buzzer sounds, stop the roller and the engine
immediately. Check and remedy any fault, see also the
maintenance manual and the engine manual.
If the air filter warning lamp (30) should light
while driving (at full engine revs), the main filter
must then be cleaned or replaced, see
Maintenance Manual.
Set the High/Low speed selectors (35) and (36) to the
desired mode, see decal on the control panel.
Max. speeds
Low drum/Low rear axle = 4.1 km/h (2.5 mph)
Low drum/High rear axle = 6.1 km/h (3.8 mph)
High drum/Low rear axle = 6,3 km/h (3.9 mph)
High drum/High rear axle = 12 km/h (7.5 mph)
The High/High mode may only be used for
transport runs on an even surface.
Carefully move the forward/reverse lever (39) in the
desired direction of travel. Speed increases as the
lever is moved farther from the neutral position.
Speed must always be regulated with the
forward/reverse lever and never by changing
speed of the engine.
Test the reserve brake by pressing the
reserve/parking brake knob (37) while the
roller is running slowly forward.
30
13
23
WARNING
WARNING
WARNING
WARNING
CAUTION
CAUTION
WARNING
