17CA 602 O602EN1
BEFORE STARTING
Turn the starter switch (1) to position I. All warning
lamps should light for about 5 seconds and the buzzer
should sound. Make sure that the warning lamps light.
Check that the voltmeter (10) goes up to at least 12
volts, and also check that the level gauges (15) give a
reading.
Check that the warning lamps for charging (31), oil
pressure (28) and parking brake (27) light.
The hourmeter (26) records the number of hours so
long as the engine is running.
10 15
1 31 28 27 26
Instruments and lamps
– Checking

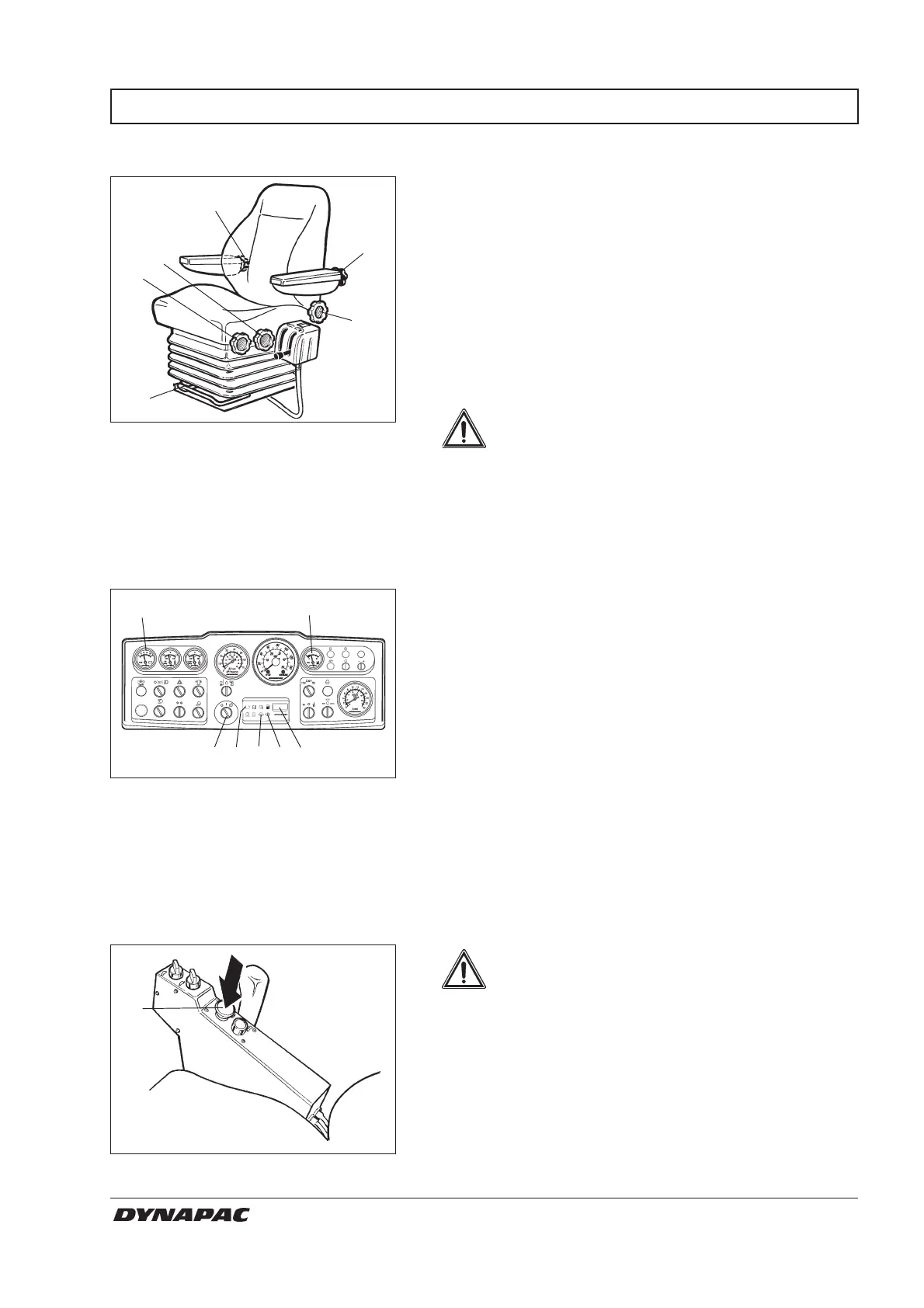

Fig. 13 Instrument panel
1. Starter switch
10. Voltmeter (Optional)
15. Fuel gauge
26. Hourmeter
27. Brake lamp
28. Oil pressure lamp
31. Charging lamp
Parking brake – Check
Fig. 14 Controls panel
37. Reserve/Parking brake knob
Operator’s seat in cab – Setting
Fig. 12 Operator’s seat
1. Lever - length adjustment
2. Knob - height adjustment
3. Knob - seat cushion slope
4. Knob - seat back slope
5. Knob - armrest slope
6. Knob - lumbar adjustment
5
4
6
2
3
1
37
Make sure that the reserve/parking brake
knob (37) is really pushed in.
The roller can start to move if the engine is
started on sloping ground if the parking
brake is not applied.
WARNING
Interlock (optional)
The engine switches off 7 seconds after the operator
rises from the seat. This will occur regardless of
whether the forward/reverse lever is in neutral or the
drive mode. The engine will not stop if the parking
brake is activated.
Adjust the operator’s seat to ensure a comfortable
posture and so that all controls are within easy reach.
The seat can be adjusted as follows:
• Length adjustment (1).
• Height adjustment (2).
• Slope of seat cushion (3).
• Seat back slope (4).
• Slope of armrests (5).
• Lumbar support (6).
WARNING
Always make sure that the seat is secure
before beginning operation.
