INSTRUCTIONS FOR TOWING

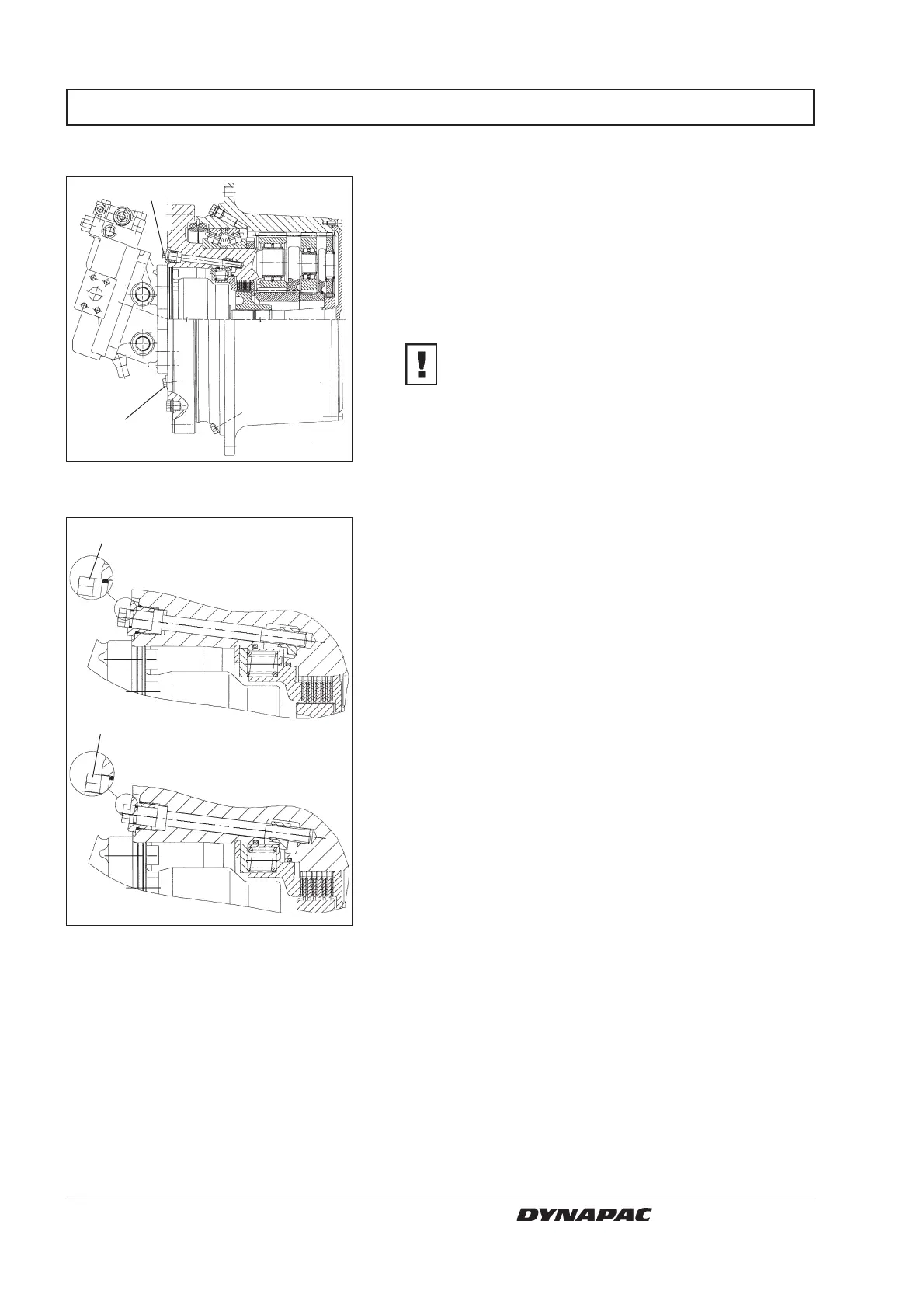

Fig. 35 Drum brake
5. Screw
5
5
Normal position
Brake active
Towing mode
Brake disengaged
Fig. 36 Drum brake
5. Screw
5
5
Drum gearbox brake
Disengage the drum brake by screwing in the two
screws (5) until they stop.
Screw in each screw equally. This is necessary to
prevent jamming the brake piston.
The brakes are now disengaged and the roller can be
towed.
After towing, remember to tighten the towing
valves (1). Screw out the adjusting screws (4)
to their initial position 34 mm (1.34 in) from the
contact surface, and tighten the locknuts (3).
Loosen the drum brake screws (5).
