The positions of the remote control joystick have the
following functions:
Forward The machine moves forward.
Reverse The machine reverses.
Right The machine rotates to the right.
Left The machine rotates to the left.
0 The machine stops if the joystick is released.
Check before operation that the machine
stops when the joystick is let free.
0
1. Give full throttle by setting the engine speed switch
(3) to “high”.
Make sure that the working area is safe.
Wet and loose ground reduce the ma-
chine’s operating ability, especially on
slopes.
Never leave the machine with the engine
running, always switch off the master
switch (17) when leaving the machine. Do
not allow passengers on the machine.
Do not operate the machine at a greater
distance than 20 metres (22 yards). Always
keep the working area and the machine
under good supervision.
Never give the transmitter to anyone who
is not fully conversant with the machine,
its operation and safety directives.
Repeated high speed setting is only possible
after 30 sec of low speed.
Operating

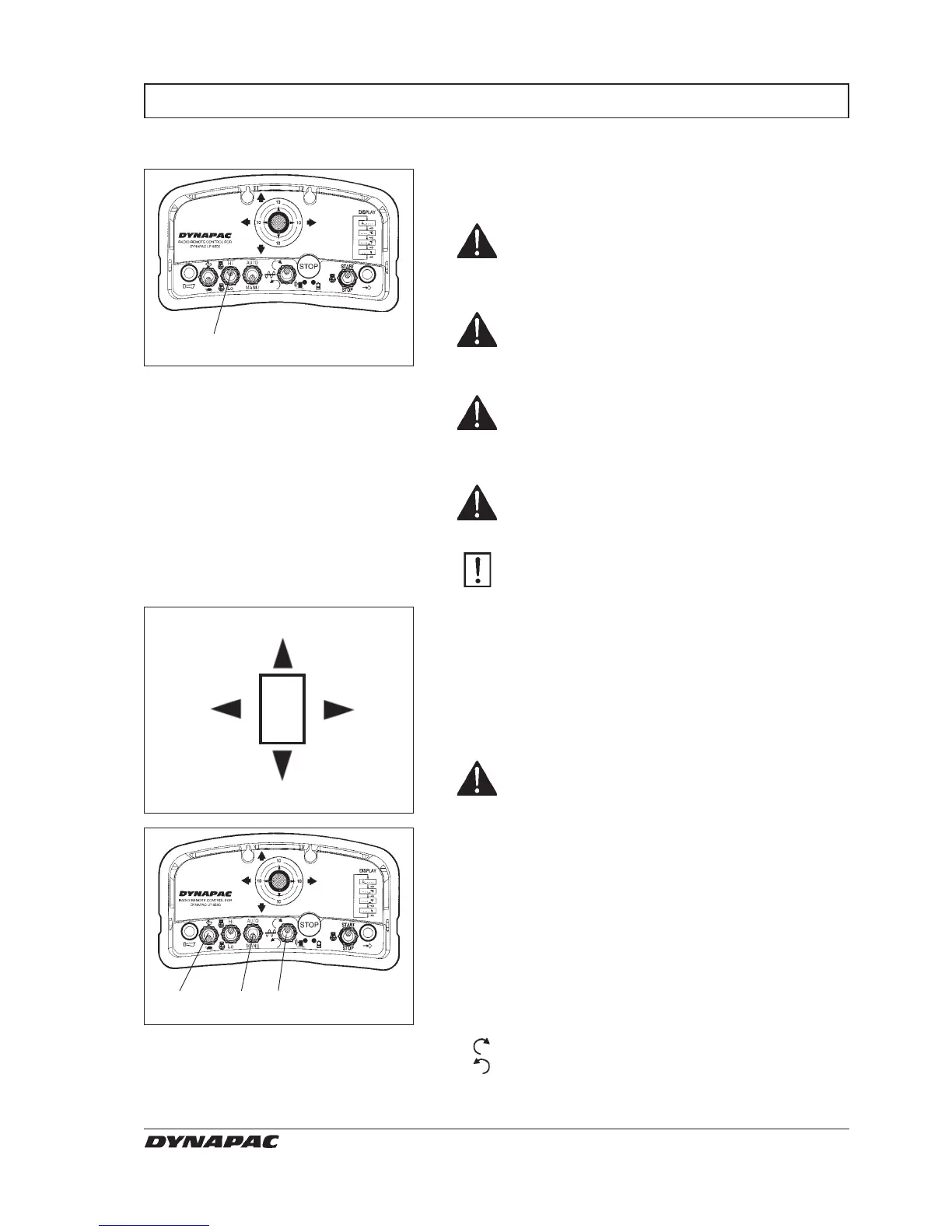

OPERATION – RADIO REMOTE CONTROL UNIT
WARNING
WARNING
WARNING
WARNING
CAUTION
3. Engine speed switch high/low
L000338C
3
WARNING
2. Speed switch, High/Low
4. Vibration switch, Manual/Automatic
6. Vibration switch, direction
L000338C
246
Switch (4) in auto position:
Vibration is activated when driving at low speed and the
vibration direction is automatic changed when driving
forward or reverse to optimize the traction.
When driving with high-speed switch (2) the vibration
automatic stops and starts automatic again when going
back to low speed. Vibration is stoped in man position.
Switch (4) in man position:
Vibration is controlled by switch (6).
In middle position-no vibration.
In
position-vibration direction clockwise.
In
position-vibration direction anti clockwise.
When driving with high-speed switch (3) the vibration
automatic stops and has to be reset in middle position
when going back to low speed.
