Connector Positions
○
1
○
2
○
3
○
4
○
5
○
6
○
7
AC (IN)
Power Switch
RS-232 (IN)
RJ-45
(for 3000 nit)
USB port
(for 3000 nit)
HDMI-1 (IN)
(for 3000 nit)
RJ-45
(for 1000 nit)
○
8
○
9
USB port
(for 1000 nit)
HDMI-2 (IN)
(for 1000 nit)
DS551DR4

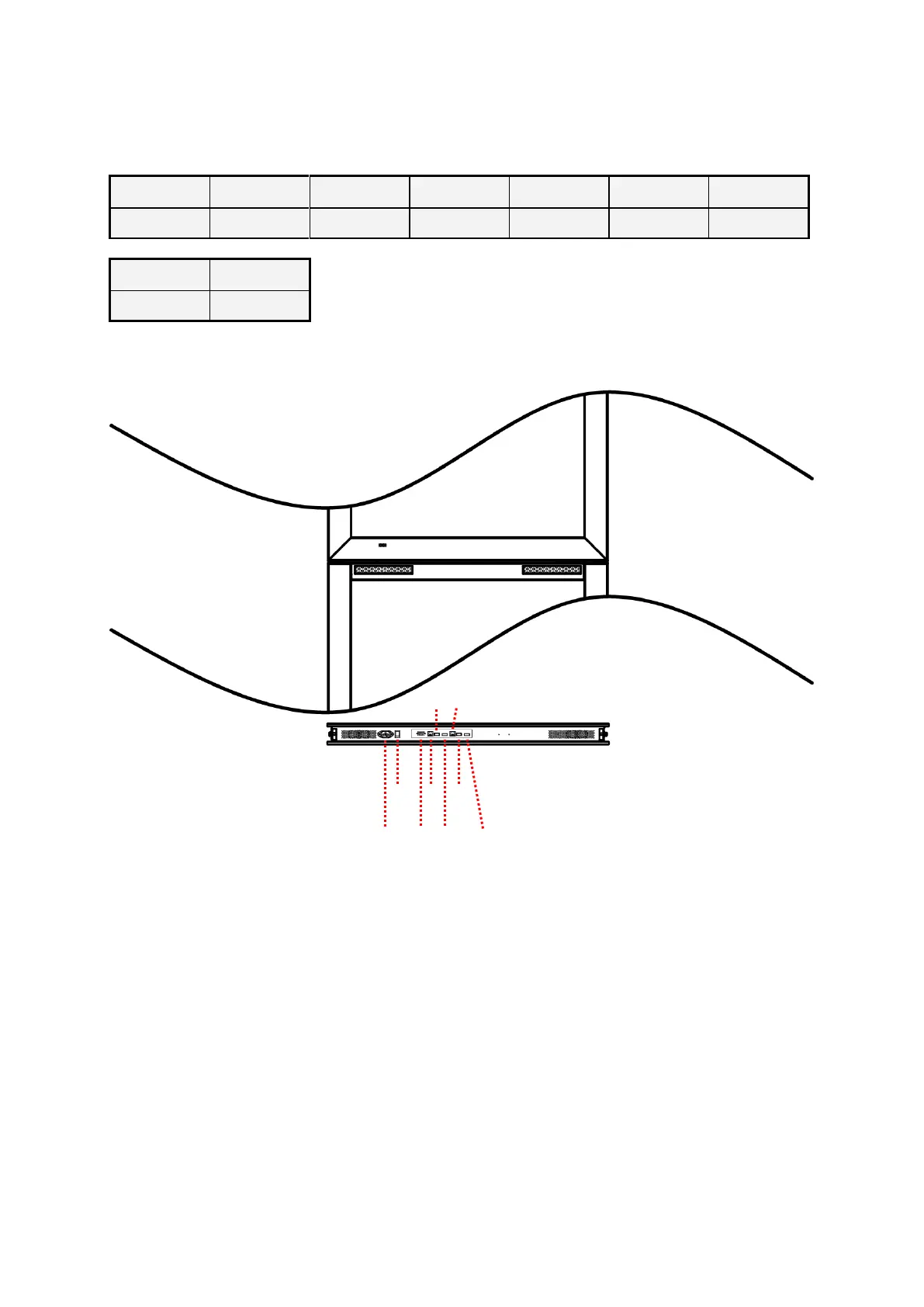

Input / Output Terminals
1. AC (IN): Connect the supplied power cord to the wall outlet.
2. Power Switch: Press to switch the main power on/off.
3. RS-232 (IN): RS232C network input connection for remote control from PC.
4. RJ-45 (IN): RJ45 network input connection. (for 3000 nit)
5. USB port: Support for USB flash drive storage, mouse and keyboard. (for 3000 nit)
6. HDMI-1 (IN): Connect the HDMI output of a PC, or the HDMI output of an AV device via a HDMI
cable. (for 3000 nit)
7. RJ-45 (IN): RJ45 network input connection. (for 1000 nit)
8. USB port: Support for USB flash drive storage, mouse and keyboard. (for 1000 nit)
9. HDMI-2 (IN): Connect the HDMI output of a PC, or the HDMI output of an AV device via a HDMI
cable. (for 1000 nit)
○
