Dynascan DS751LT4 - Input; Output Terminals

DS751LT4 User Manual 15

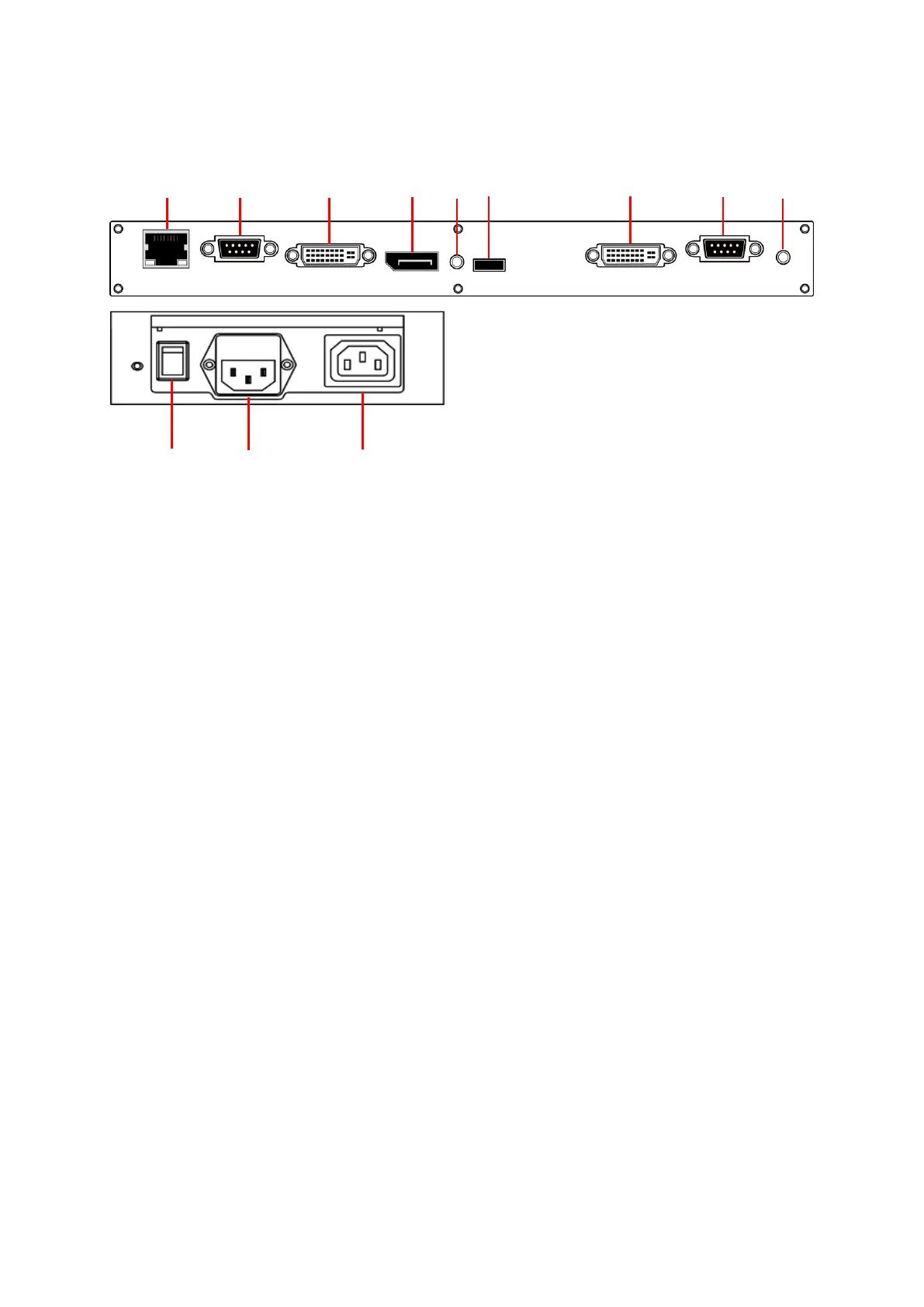

Input / Output Terminals
1. RJ-45 (IN): RJ45 network input connection for remote control from PC.
2. RS-232 (IN): RS232C network input connection for remote control from PC.
3. DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device via a
DVI-HDMI cable.
4. DP (IN): Connect the DP output of a PC, or the DP output of an AV device via a DP cable.
5. Audio (IN): Connect the audio input from an external AV device.
6. Extension Connector: Extension Connector for optional IR Extension sensor kit (ESK201).
7. DVI (OUT): Output the signal from DVI IN.
8. RS-232 (OUT): RS232 control function for daisy chain application.
9. Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device.
10. Power Switch: Press to switch the main power on/off.
11. AC (IN): Connect the supplied power cord to the wall outlet.
12. AC (OUT): AC outlet 100~240V up to 100 Watt.
○
6
○
7
○
8
○
10
○
11
○
5
○
4
○
3
○
2
○
1
○
9
⑫
