Sweep
You can use the Sweep (Target Sweep) feature to
bathe a wider area with the interferential current—
up to 80 percent of the area within the electrodes
may be covered. The Sweep feature utilizes the
patented Target feature and moves the point of
interference to cover a wider treatment area while
still retaining the full interferential beat.

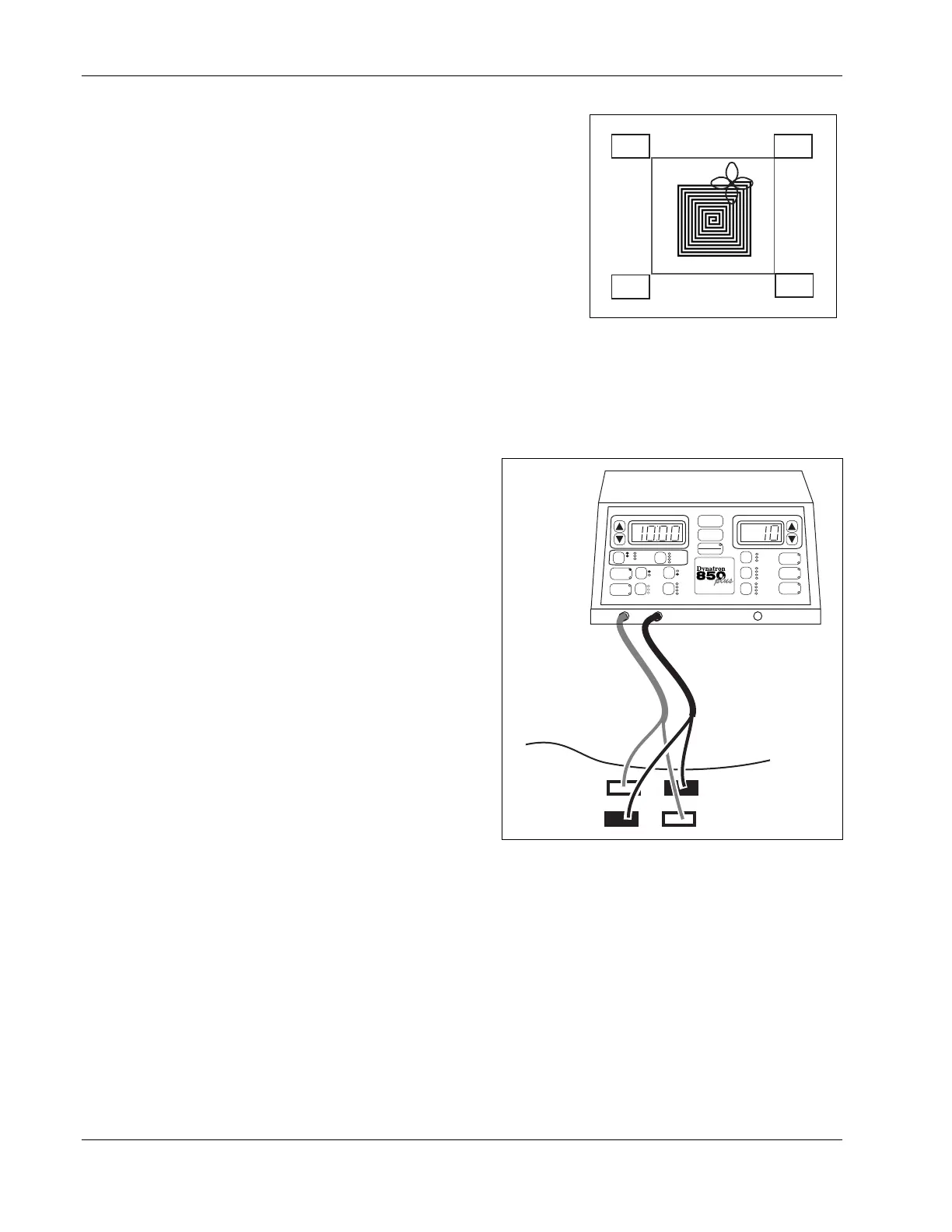

The Sweep option literally moves the point of
interference inward and outward in a somewhat
spiral pattern as shown in the illustration to the right,
bathing about 80 percent of the area within the
electrodes with the interferential current.
Interferential Electrode Placement
When performing interferential therapy
with a two-channel/four-electrode
setup, it is important to arrange the
electrodes in a criss-cross manner so the
current from one channel will intersect
with the current from the second
channel at the point where treatment is
to be delivered.
Consult published literature for
electrode placements for specific sites
and conditions.
Channel
1
Channel
1
Channel
2
Channel
2
Sweep bathes a larger area with the
interferential current.
