Fitting notes
Service manual
14

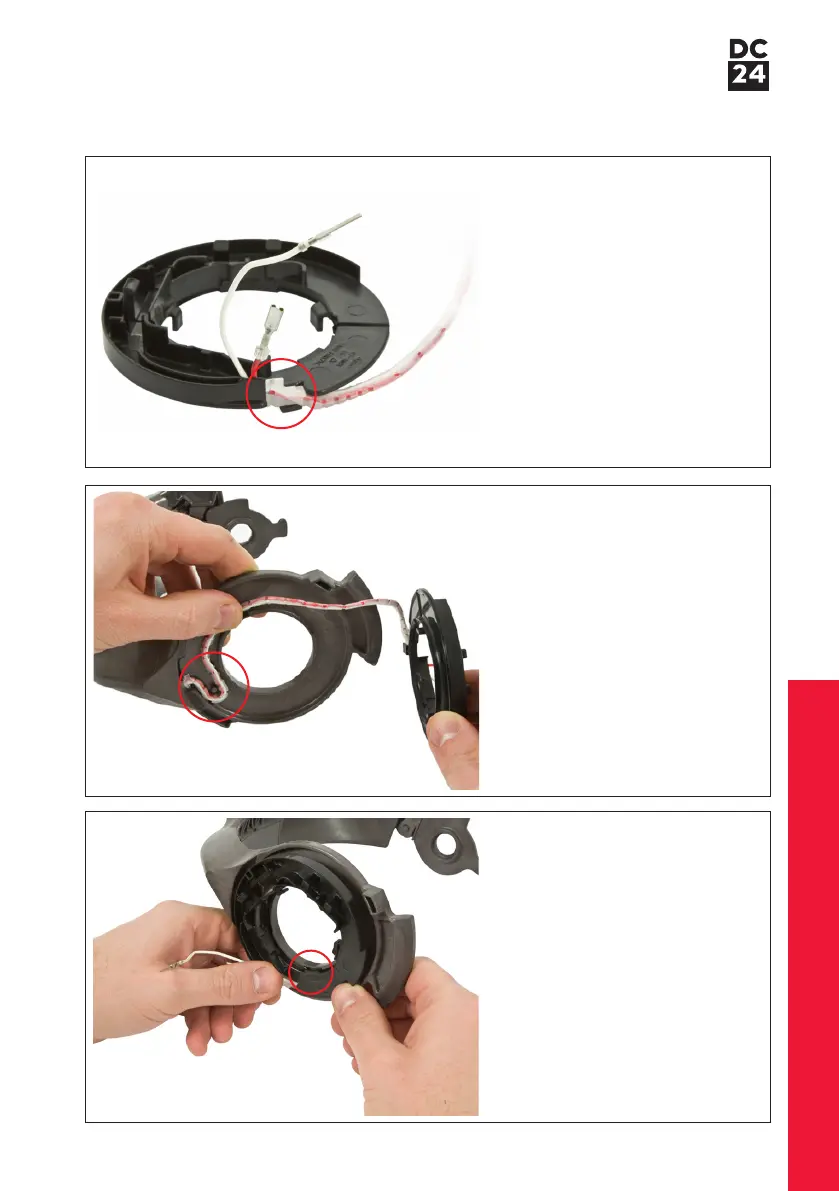

26 To fit, ensure the yoke loom
grommet is positioned in the
connector clip as shown.
28 Align the lugs on the connector
clip with the detail on the yoke
assembly. Rotate the clip to lock
into position.
27 Ensure the yoke loom loops
around the pip detail on the yoke.
