Dyson DC24 Service Manual

Fitting notes
Service manual
23

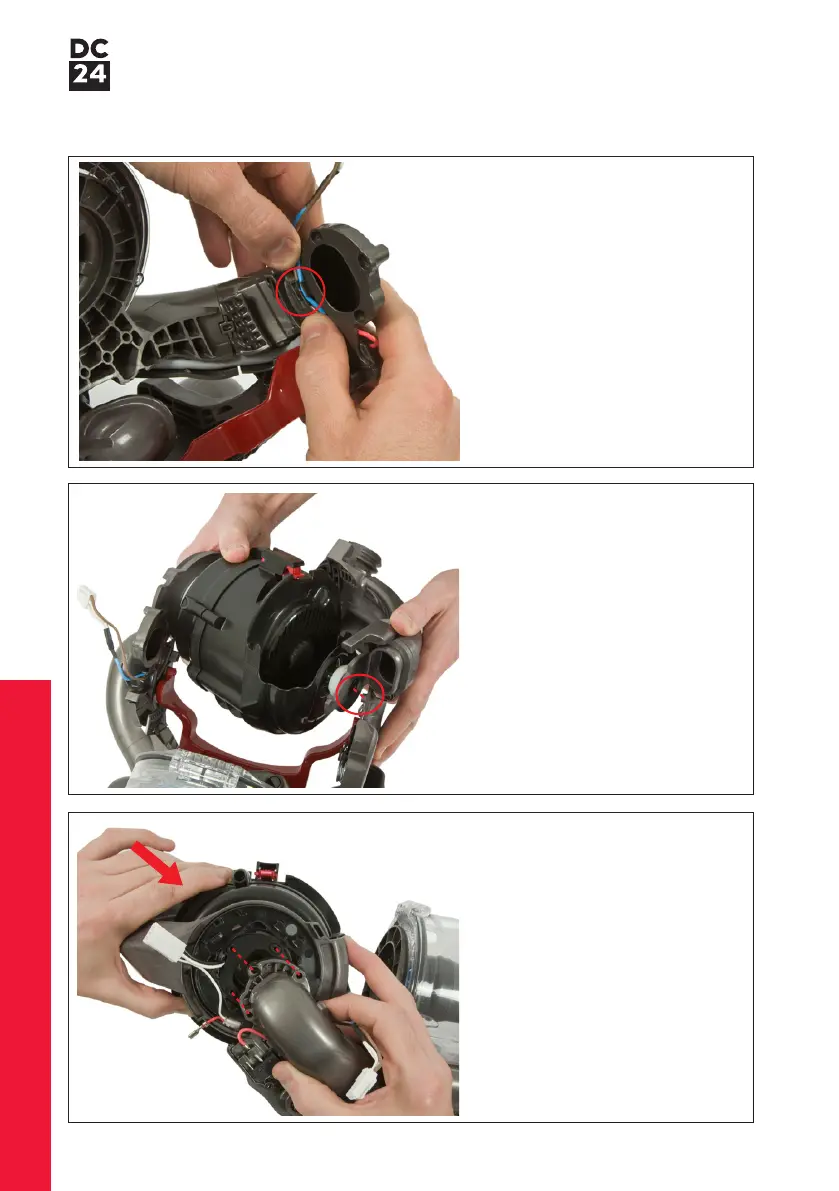

54 Position the motor bucket and
yoke onto the screws boss on the
duct assembly.
55 Slide the other end into the duct
ensuring the three holes align.
Fit a long screw next to the arrow
and a long screw on the other
side behind the hose.
53 Before fitting the yoke and motor
bucket onto the duct ensure the
internal cable wires are located
into the channels on the duct.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
