Fitting notes
Service manual
24

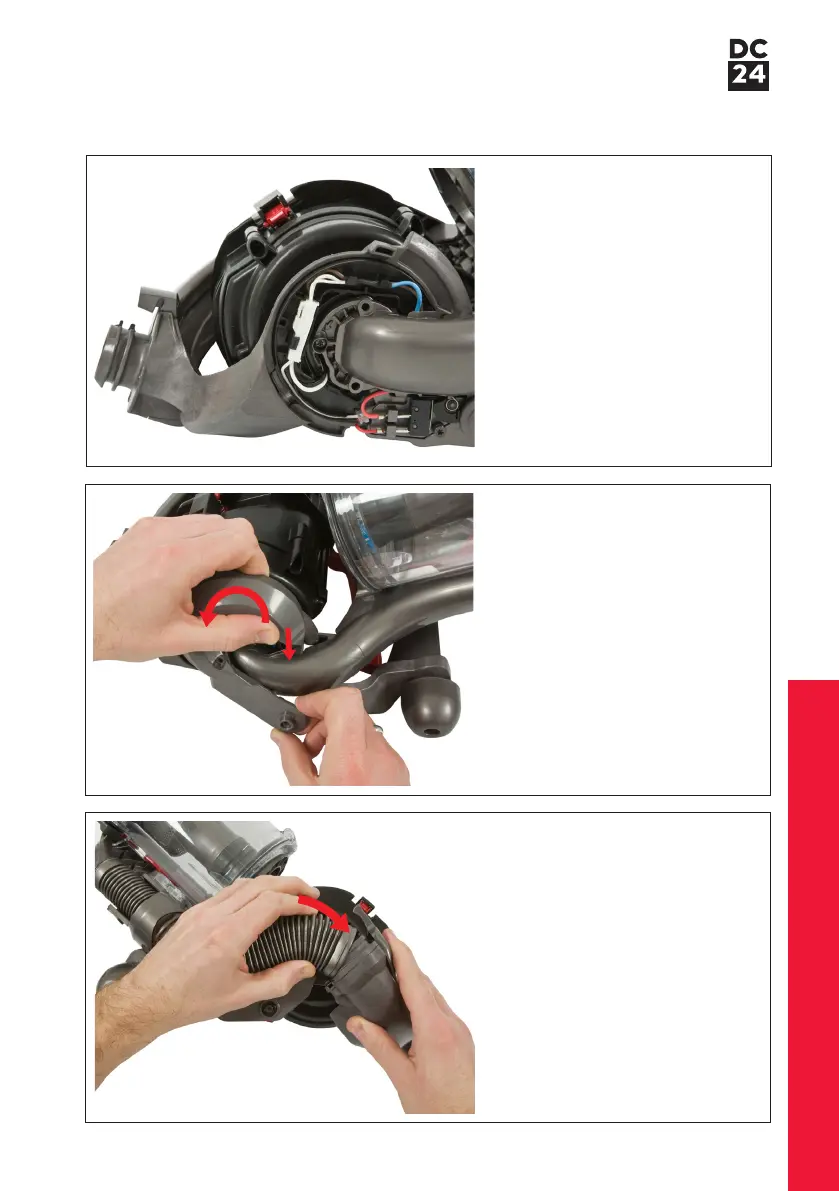

56 Reconnect the two halves on the
cable connector. Connect the red
wire to the upright switch. Dress
all wires neatly into the channels
provided.
57 Fit the upright switch cover onto
the side of the duct assembly.
Fit the three long screws.
58 Fit the lower duct hose onto the
side of the product ensuring the
ends are seated around all edges.
