Fitting notes
Service manual
25

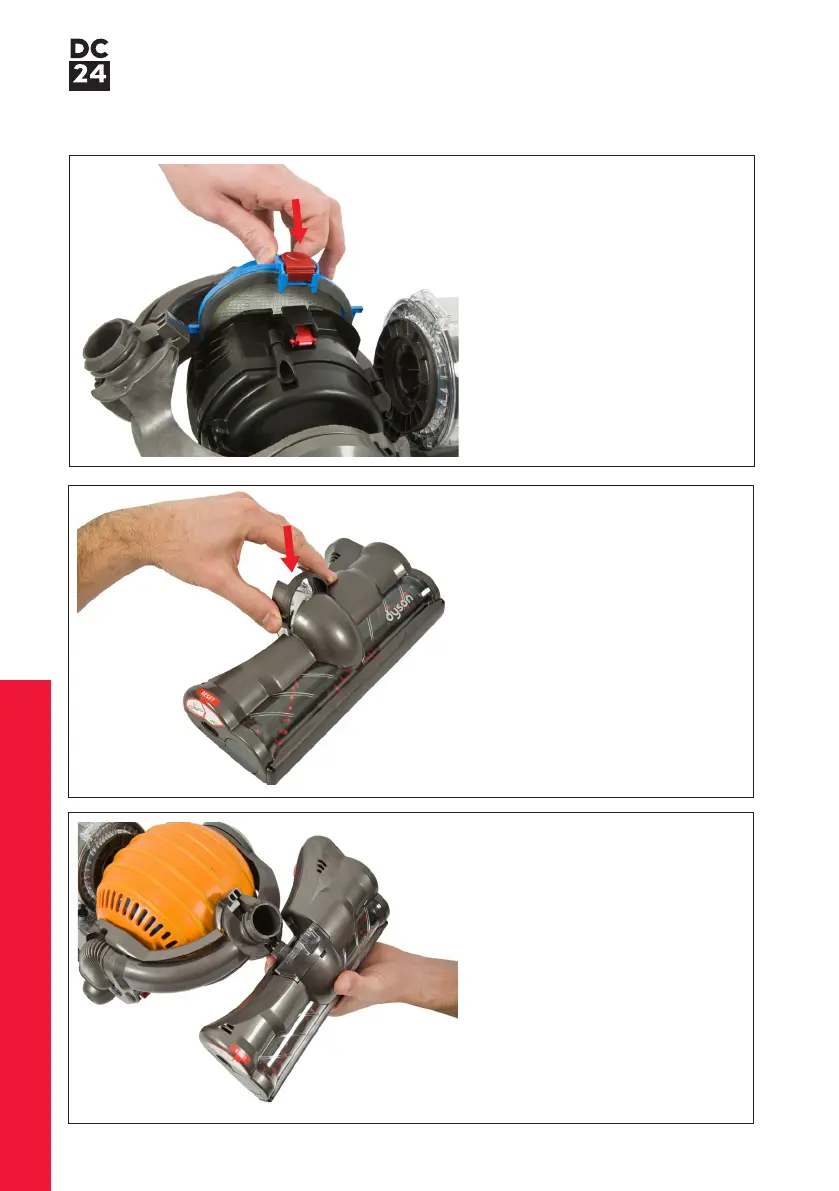

61 Align the pins on the cleaner head
assembly with the plug on the
yoke assembly.
Clip the cleaner head into
position.
60 Locate the c-clip onto the top of
the cleaner head assembly.
59 Fit the post filter assembly. Fit the
two halves of the ball assembly.
Fit the four screws.
