Dyson DC24 Service Manual

Fitting notes
Service manual
31

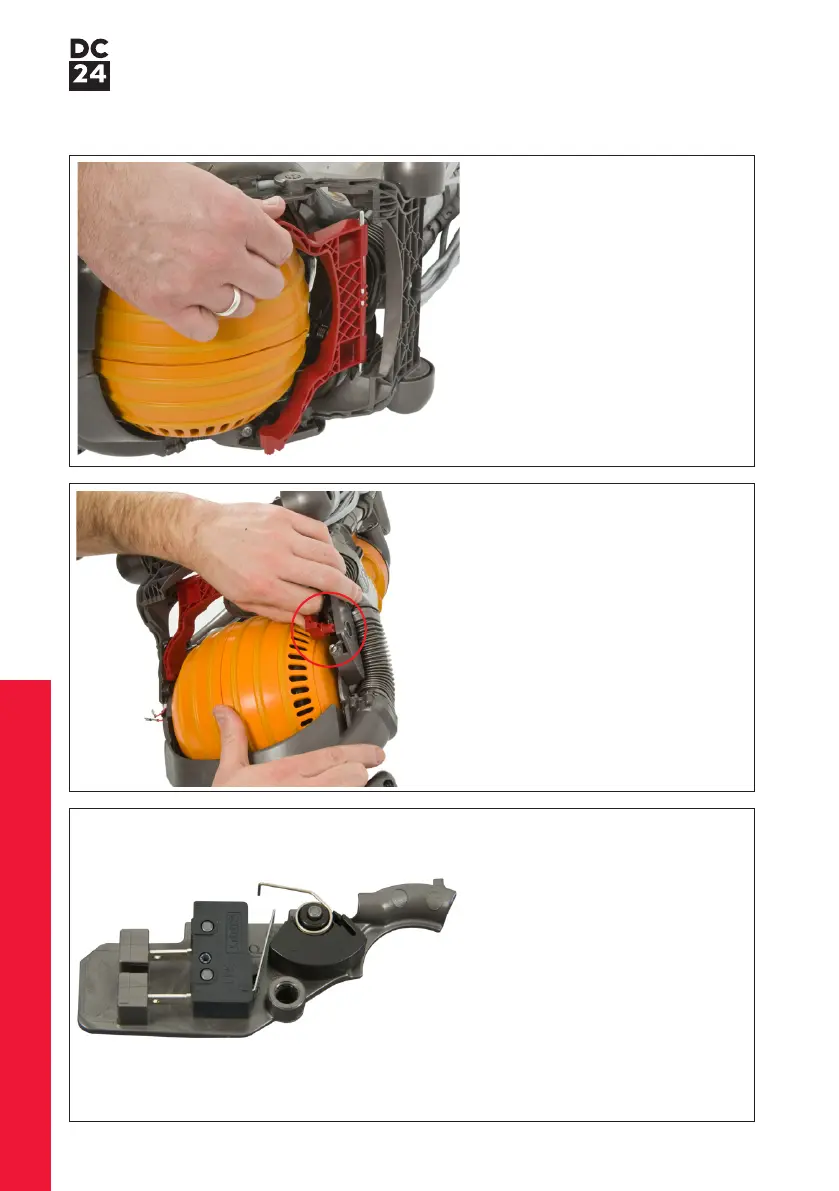

77 If previously removed ensure
the upright switch and cam are
positioned correctly on the upright
switch housing.
75 Slide the pedal axles into the
channels in the stabiliser assembly.
76 Locate the lugs on the pedal into
the holes on either side of the
duct. Fit the plastic washers and
short screws.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
