Fitting notes
Service manual
32

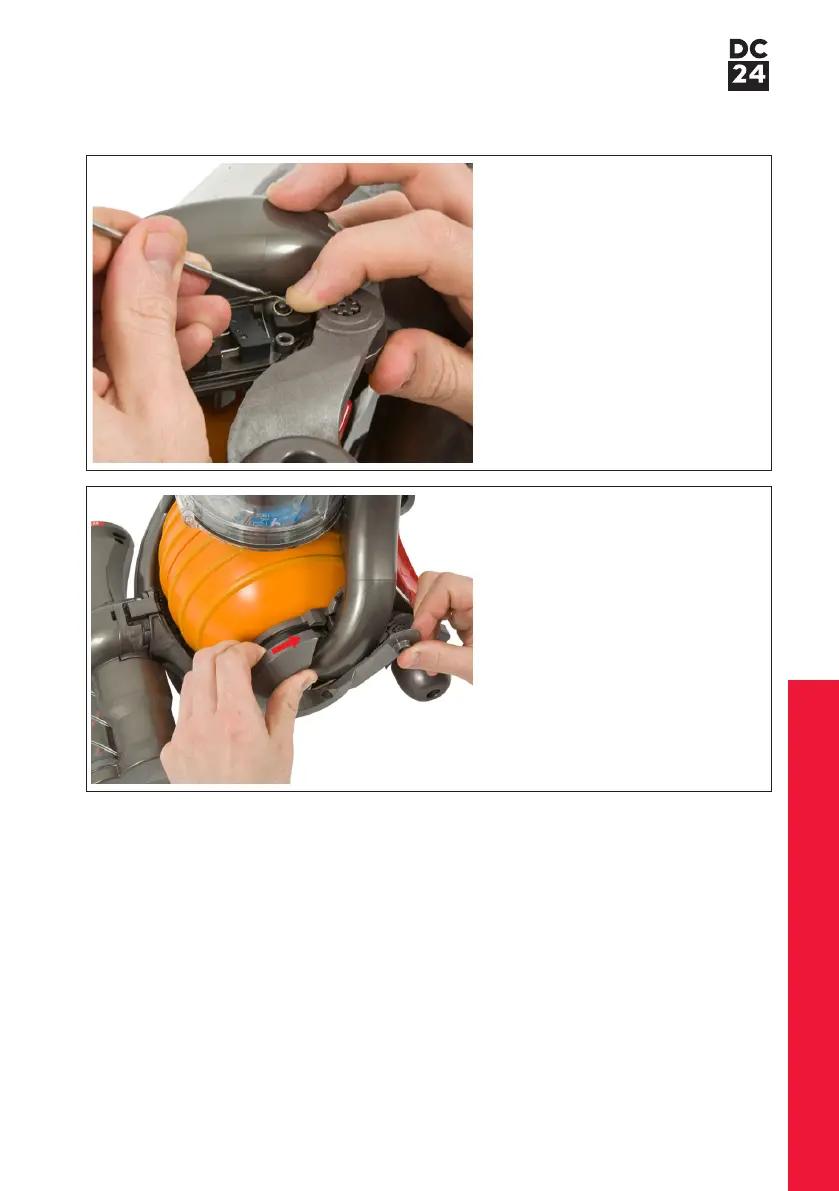

78 Carefully fit the upright
switch housing onto the side
of the duct assembly.
Locate the cam spring into the
channel on the duct. Fit the short
screw. Attach the two red wires
to the upright switch.
79 Fit the upright switch cover
onto the side of the duct.
Fit the three long screws.
