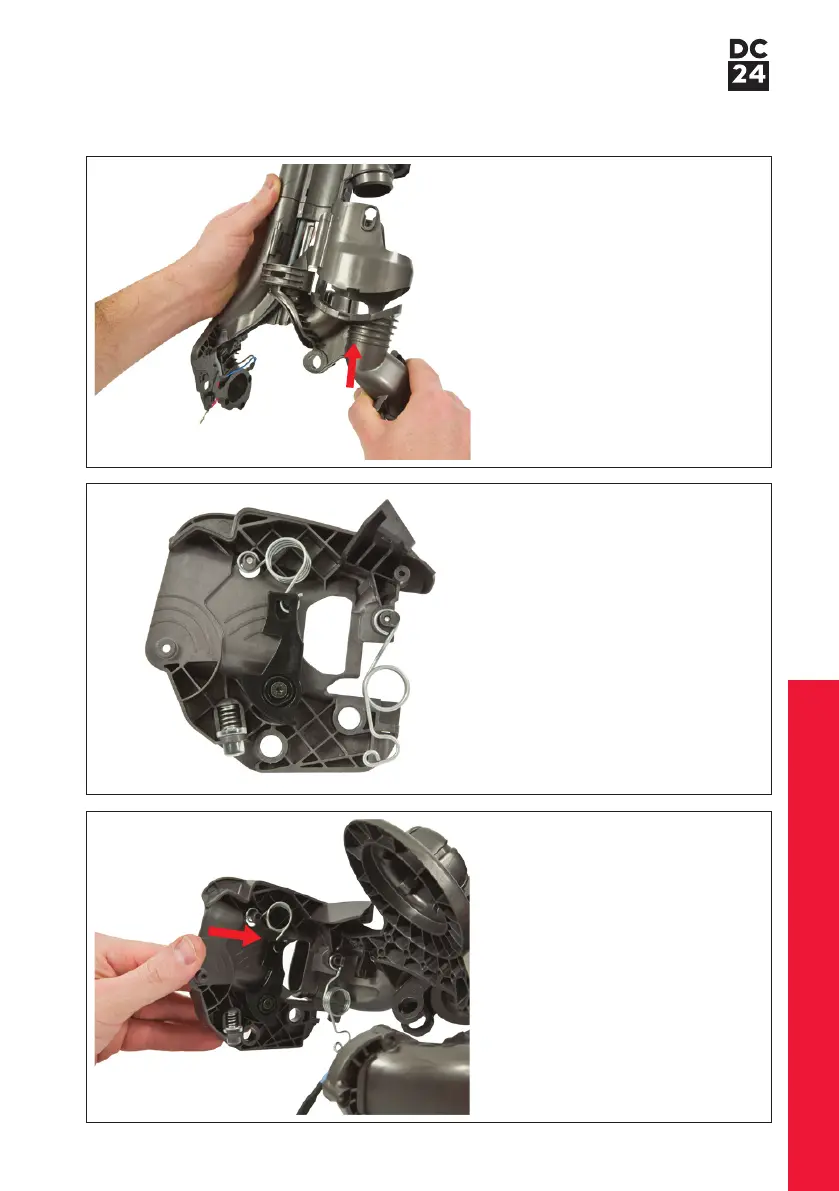

Fitting notes
Service manual
58
144 Slide the upright lock assembly
onto the valve U-bend.
Fit the three screws.
143 Before fitting the upright lock
assembly ensure the pedal spring
is located in the orientation
shown.
142 Locate the valve U-bend onto the
base of the duct assembly.
Fit the three screws.
