Dyson DC24 Service Manual

Fitting notes
Service manual
59

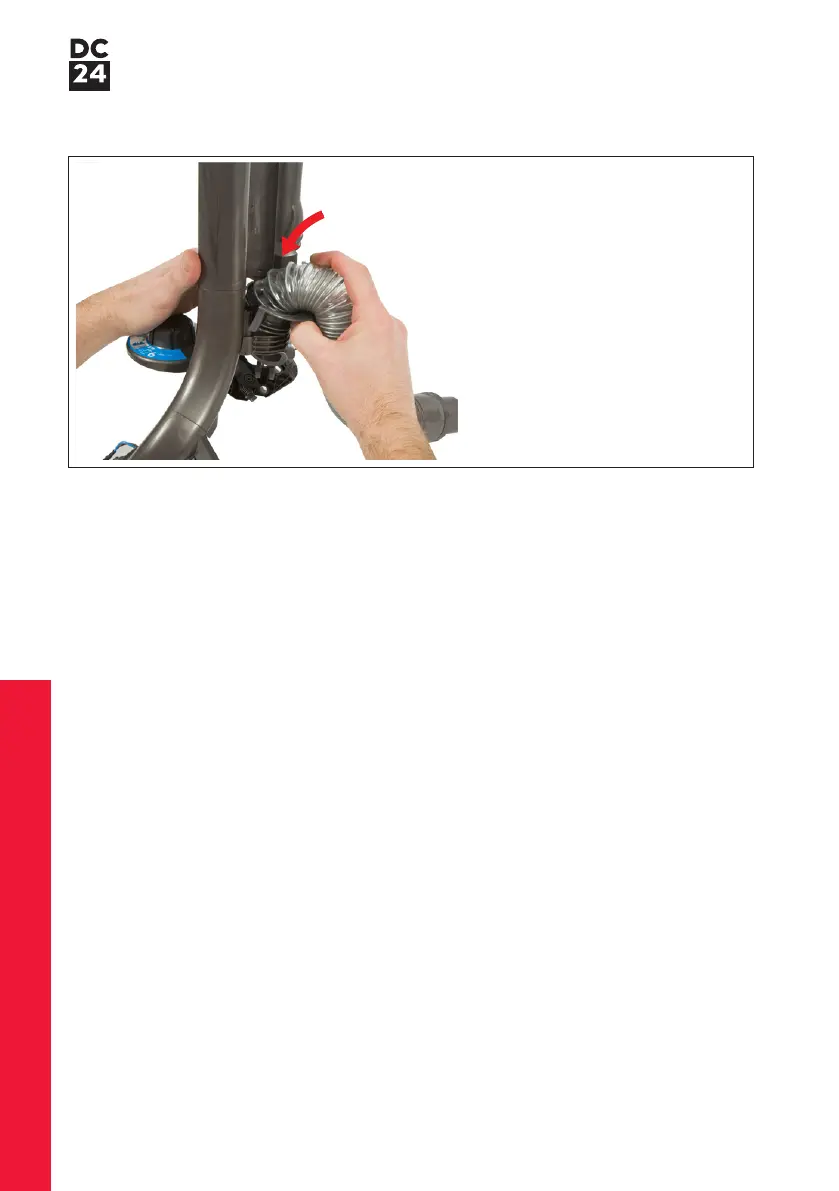

145 Locate the hose onto the rear of
the duct assembly.
After fitting, the following parts should be fitted as previously shown:
Motor and yoke assembly (Pages 23 - 25)
Stabiliser and pedal assembly (Pages 30 - 32)
Valve hose assembly (Pages 35 - 36)
Valve hatch assembly (Pages 39 - 40)
Valve wheel (Page 33)
Switch and powercord assembly (Pages 45 - 50)

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
