E Instruments E4500-S User Manual

113
K000000000EJ 023826A0 100714
07/08/14
10:00
Draft
Ambient CO
Pressure
Smoke
Temperature
Tightness test
Measurements
External probe

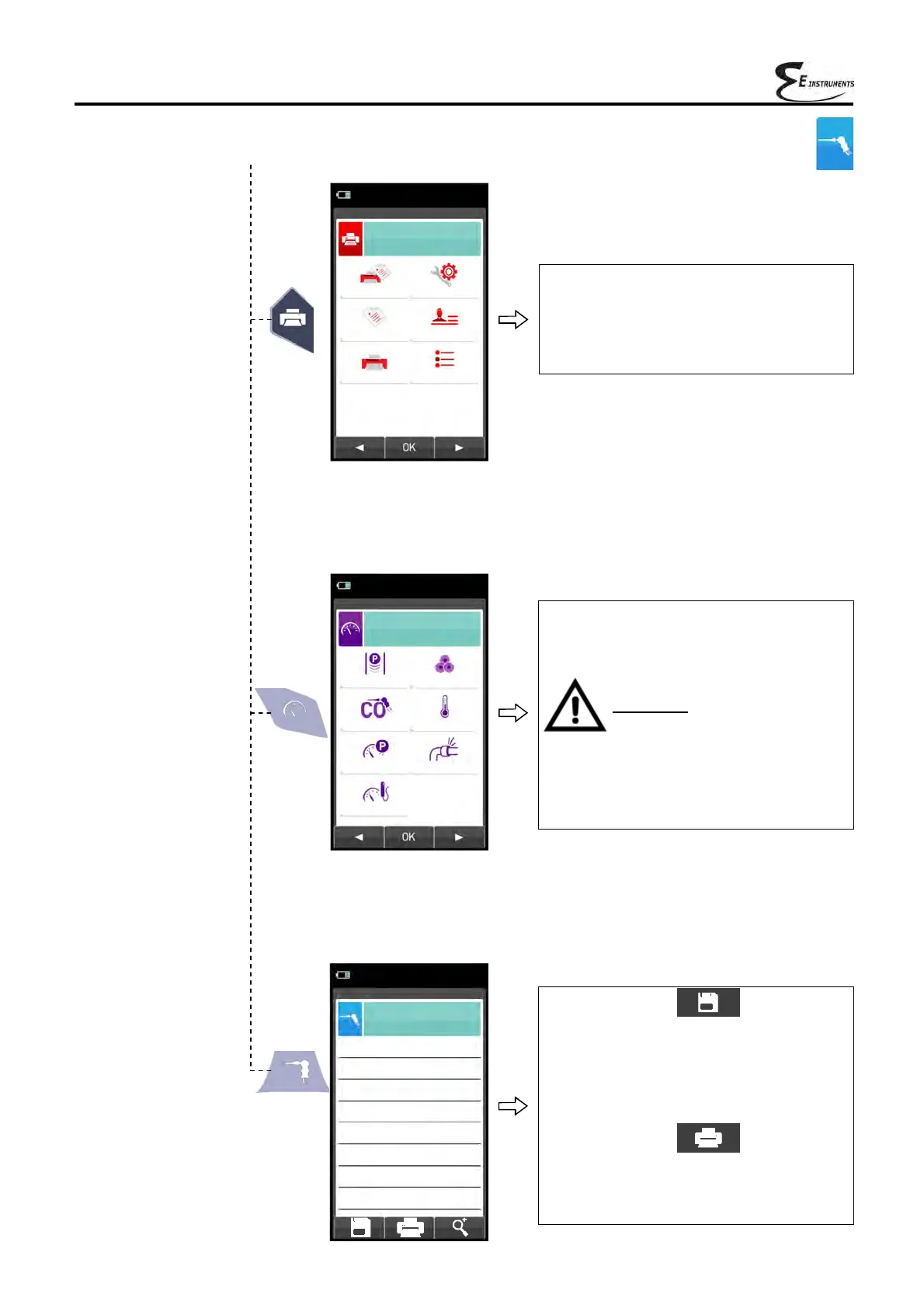

PARAMETERS TO SET BEFORE
PROCEEDING (SEE SECTION 11.0):
Configuration
Header
Measures list
A C Q U I R E T H E F O L L O W I N G
M E A S U R E M E N T S B E F O R E
PROCEEDING WITH THE COMBUSTION
ANALYSIS (Section 12.0):
Draft
Smoke
Ambient CO
Temperature
Pressure
In you don’t, the measurements
will not be printed with the
combustion analysis.
07/08/14
10:00
Report
Test
Printer
Configuration
Header
Measures list
Print
07/08/14
10:00
Eff. tot
%
91.4
Loss tot
%
8.6
∆T
°C
74.7
T air
°C
15.4
T flue
°C
190.1
Ex. Air
1.25
CO
2
%
9.3
O
2
%
4.2
Combustion analysis
PRESS THE KEY ' ':
It starts saving the current analysis
according to the set mode.
- Manual See section 11.2.1
- UNI 10389 See section 11.2.2
- BImSchV See section 11.2.3
- data logger See section 11.2.4
PRESS THE KEY ' ':
It starts the printing on test ticket of the
c u r r e n t a n a l y s i s ; a d d i t i o n a l
measuremnets are also printed, if they
are present in the memory.
