E Instruments E4500-S User Manual

50
K000000000EJ 023826A0 100714
CONTEXT KEY FUNCTION
Starts the test to check the tightness of the gas sampling probe.
Starts the test of the gas sampling probe.
OK
Tightness test of the probe.

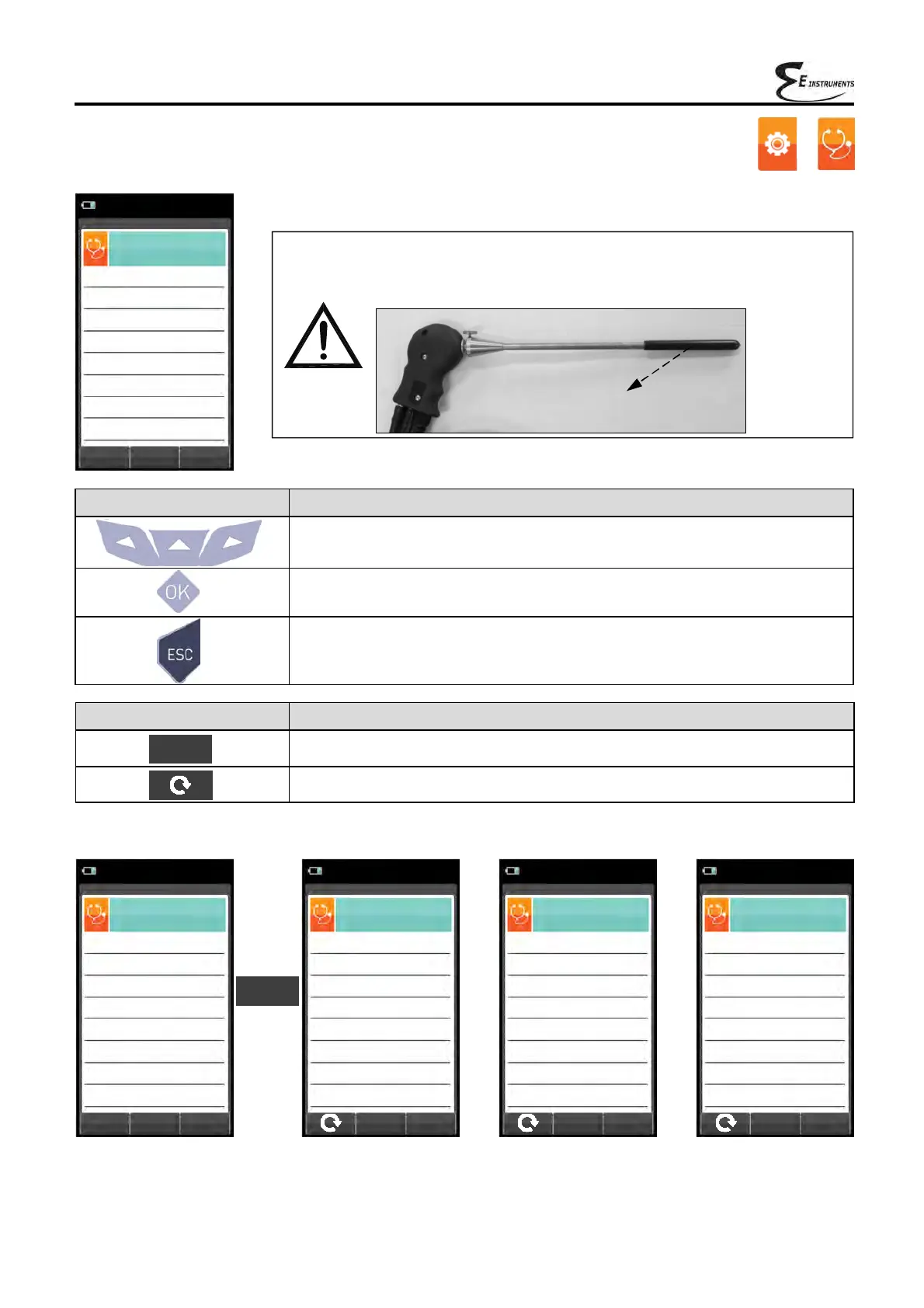

9.7.2 Configuration→Diagnostic→Gas probe →
OK
Diagnostic
Gas probe
Press OK to start
Close the flue gas probe
07/08/14
10:00
OK
Diagnostic
Gas probe
Press
OK to start
Close the flue gas probe
07/08/14
10:00
OK
→ →
Results:
Tightness: The system is OK
Error: Make sure that the probe is connected to the input P-, ch
eck the seals of the pneumatic connections
and/or the seal of the condensation trap and check that the test cap is correctly inserted on the tip of
the probe. WARNING: a damaged probe tip may impair the test.
Connect the flue gas sampling probe and water trap assembly to the
instrument;
Fully insert the black rubber cap on the gas probe tip, as shown in
the following picture:
Black rubber cap
KEY FUNCTION
Activate the context keys shown on the display.
Activates the context key located in the left side of the display.
Returns to the previous screen.
Diagnostic
Gas probe
Calibration
Press OK to start
Close the flue gas probe
07/08/14
10:00
Diagnostic
Gas probe
Probe test
Calibration
Press OK to start
Close the flue gas probe
07/08/14
10:00
Diagnostic
Gas probe
Probe test
Calibration
Press OK to start
Close the flue gas probe
07/08/14
10:00
Result: leak
