E Instruments E4500-S User Manual

13
K000000000EJ 023826A0 100714

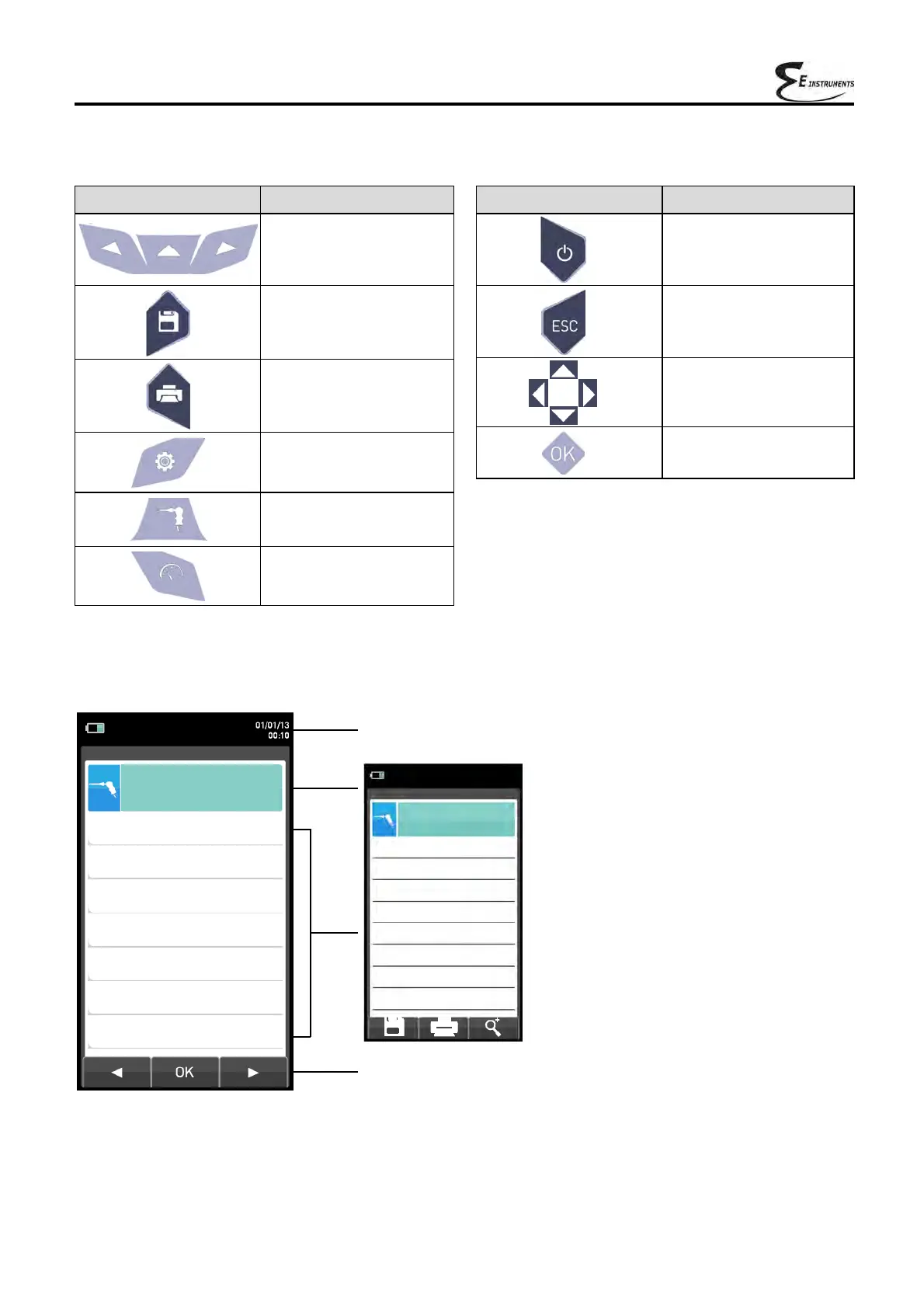

4.3.1 Keypad
Adhesive polyester keypad with keys for main control functions:
KEYS FUNCTION
Activates the context
keys shown on the
display
A c c e s s t o t h e
Configuration menu
D i s p l a y s t h e
combustion analysis
A c c e s s t o t h e
Measurements menu
Access to the Memory
menu
Access to the Printing
menu
4.3.2 Display
Date, time and battery status.
Selected menu.
Parameters relative to the selected menu.
Context keys. In the various menus the functions vary depending on
the type of operation being carried out.
KEYS FUNCTION
Turns the device On /
Off
Exits the current screen
Select and/or Modify
Confirm/Save settings
TFT 272 x 480 pixel backlit color display with 21 characters available and 8 lines. Allows the user to view the
measured parameters in the most comfortable format; a Zoom function displays the measured values in
magnified form.
CAUTION:
If the instrument is exposed to extremely high or extremely low temperatures, the quality of the display
may be temporarily impaired. Display appearance may be improved by acting on the contrast key.
07/08/14
10:00
Eff. tot
%
91.4
Loss tot
%
8.6
∆T
°C
74.7
T air
°C
15.4
T flue
°C
190.1
Ex. Air
1.25
CO
2
%
9.3
O
2
%
4.2
Combustion analysis
Combustion analysis
Test 02
Test 01
Test 04
Test 03
Test 06
Test 05
Test 07
