Proteus 1000 Operation Manual 15
Setup
Connection Instructions

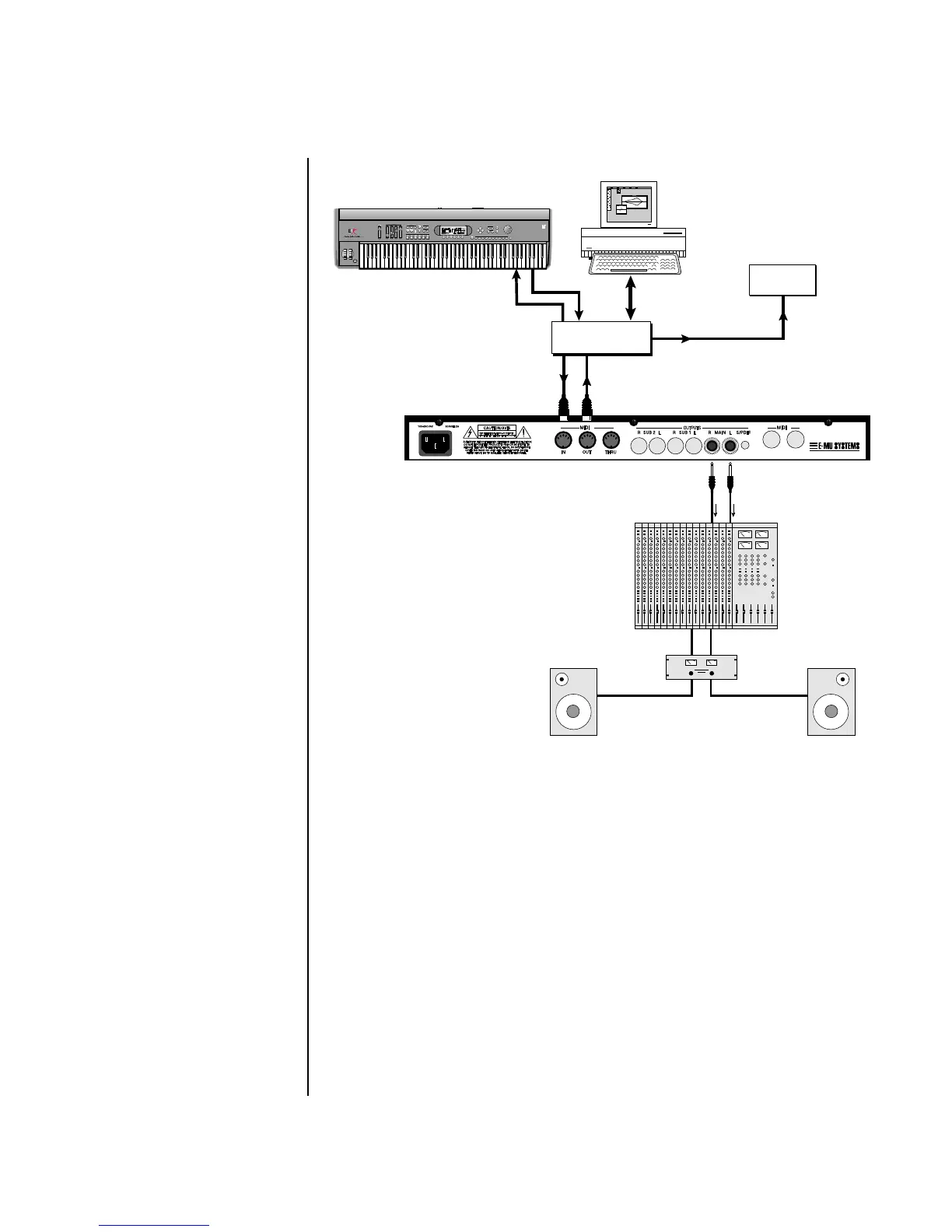

Studio Setup
MIDI In
In this setup, Proteus 1000 is controlled by MIDI messages, received at the
MIDI input, which are routed by the MIDI interface. The MIDI interface
allows any MIDI controller, such as a MIDI keyboard or a computer, to
control the module.
MIDI Out
The MIDI Out jack transmits program data to a computer or other device.
Outputs
A stereo connection is highly desirable because of the added realism of
stereophonic sound. Plug stereo headphones into the headphone jack
located on the left side of the front panel. The Right Main output jack
serves as a mono output when the Left Main plug is not plugged in. The
Left Main output jack is a stereo jack carrying both channels when the
Right output jack is empty.
SCOTTS VALLEY CA. U.S.A.
B
IN THRU
A
~
MIDI OutMIDI In
MIDI Controller
(MIDI Keyboard, Sequencer, etc.)
Amp
Mixer
MIDI In
Additional
MIDI
Devices
MIDI
Interface
Out
“A” MIDI
channels
1-16
In
Out
In
Computer
EMULATOR
PRESET
SAMPLE
SEQUENCER
PAGE
LEVEL
PRESET SELECT
REAL TIME CONTROLLERS
ASSIGNABLE KEYS
ENTER
EXIT
RETURN
0.987654321
To Next Page
