Proteus 1000 Operation Manual 21
Basic Operations
Front Panel
Basic Operations

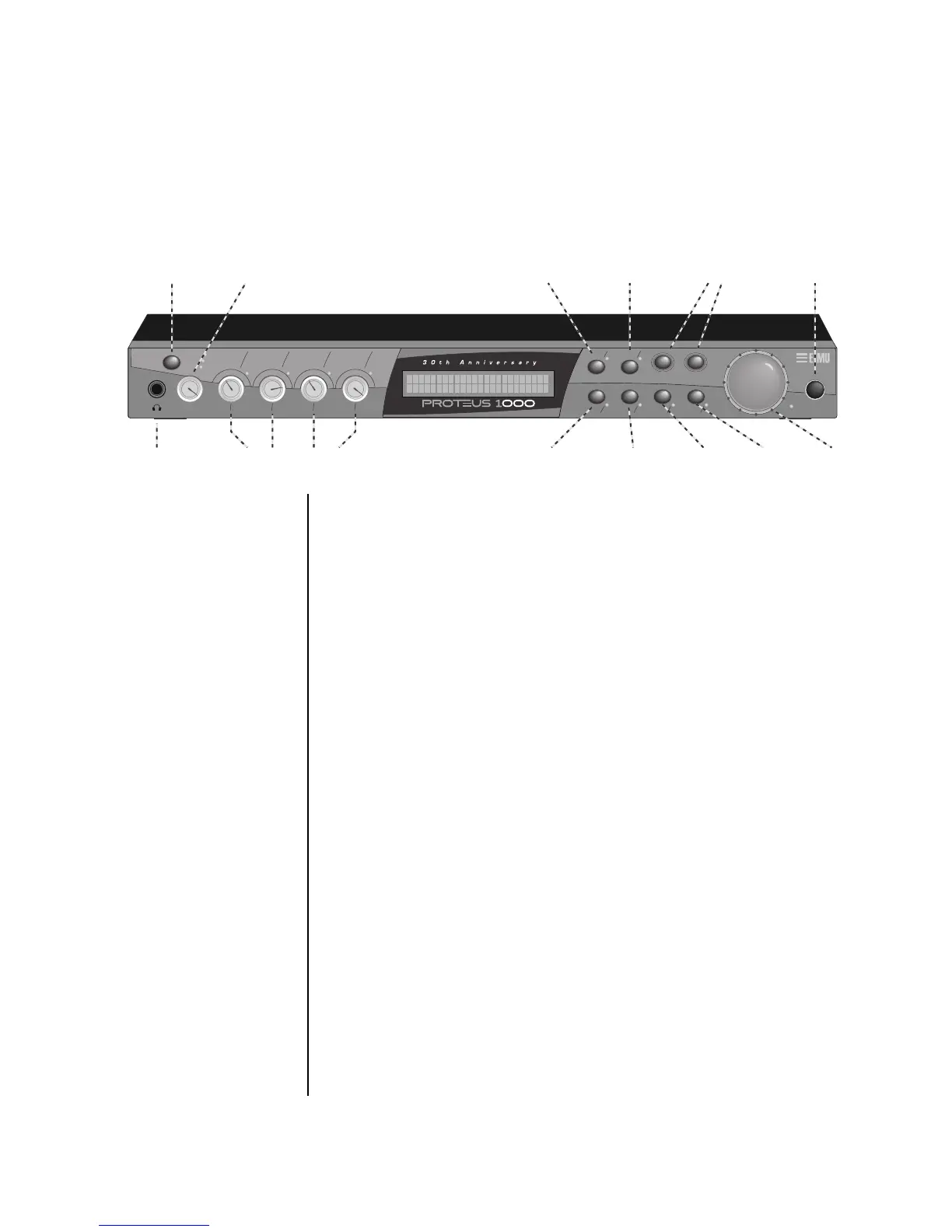

Front Panel The Proteus 1000 front panel contains an LCD screen, nine buttons and
four real-time controllers. Functions are grouped logically and the controls
are arranged for ease of use. Precisely because Proteus 1000 is so simple to
use, you might be tempted to skip this section. If you just can’t help
yourself, at least read the Real-time Controller information beginning
page 23. There are several “power user” features in the interface which
make programming even easier and we wouldn’t want you to miss them.
Volume Control This control is the master volume control for all audio outputs. The Volume
Control does not affect any editing or user interface operations.
For maximum dynamic range, turn this knob all the way up and control
the volume from your mixer or amplifier.
Master Button The Master menu contains parameters that affect the entire machine, not
just certain presets. An illuminated LED to the right of the button indicates
that you are in the Master menu.
Edit Button Use the Edit menu when you want to create or modify a preset. An illumi-
nated LED to the right of the button indicates that you are in the Edit
menu.
Control Button The Control button is used to change the function of the Controller knobs
(see the next section). Each time you press the Control button, the Control
Mode toggles to select only one of the three Control Rows. The currently
A/EVOLUME B/F C/G D/H
AUDITION MULTI SAVE/COPY
HOME/ENTER
MIDI
POWER
TONE
ATTACK
DYNAMIC 1
A-D
E-H
I-L
PRESENCE
DECAY/RLS
DYNAMIC 2
SHAPE
MOVEMENT
FX A
RATE
FX B
MASTER EDIT
Volume
Control
Master
Menu
Edit
Menu
Cursor
Controls
Power
Switch
Control
Button
Headphone
Jack
Realtime
Control Knobs
Display
Audition
Button
Multimode
Button
Save/
Copy
Home/
Enter
Data
Entry
