Proteus 1000 Operation Manual 87
Edit Menu
Four Layer Architecture
Four Layer
Architecture

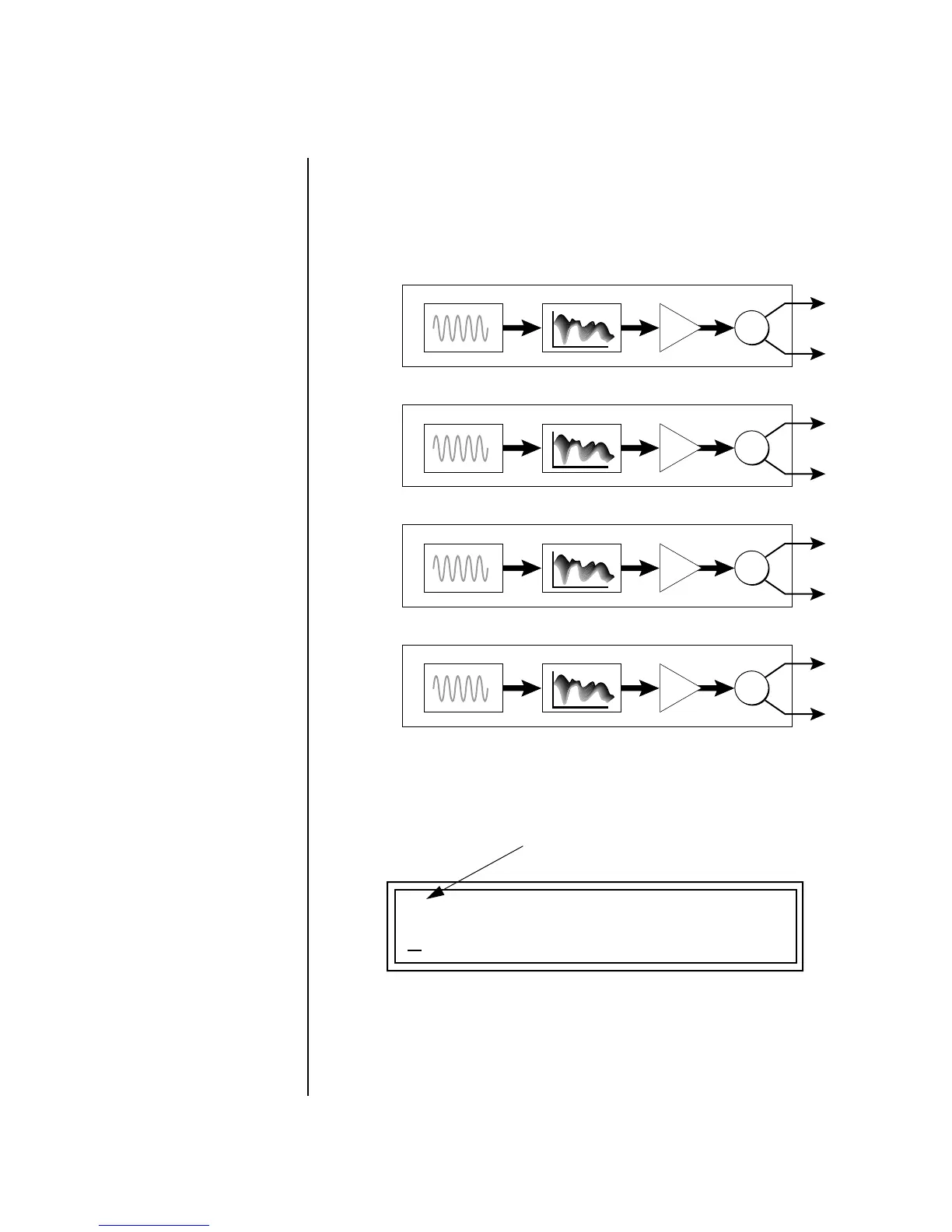

Proteus 1000 provides a 4 layer instrument structure. Each layer is a
complete synthesizer voice with 50 filter types, over 64 modulation sources,
more than 64 modulation destinations and 24 patchcords to connect every-
thing together. In addition, the four layers can be crossfaded or switched by
key position, velocity or any real-time modulation source.
Selecting Layers In most of the Edit screens, the selected layer is shown in the upper left
corner of the display. Layers 1-4 or All can be selected by positioning the
cursor on this field and using the Data Entry Control to change the layer. In
the screen shown below, Layer 1 is selected.
When “All Layers” (A) is selected, the existing parameter value for any field
will be displayed if all layers are equal. If the layer parameter values are
NOT equal, the value of Layer 1 will be displayed with flashing characters.
If you move the Data Entry Control all values will be equal to this new
value and the parameter value will no longer flash.
Instrument
Layer 1
Z-Plane Filter
DCA
R
L
Pan
Instrument
Layer 2
Z-Plane Filter
DCA
R
L
Pan
Instrument
Layer 3
Z-Plane Filter
DCA
R
L
Pan
Instrument
Layer 4
Z-Plane Filter
DCA
R
L
Pan
L1
INSTRUMENT ROM:CMPSR
0
305 wav:ES Rag
