4. Do one of the following:

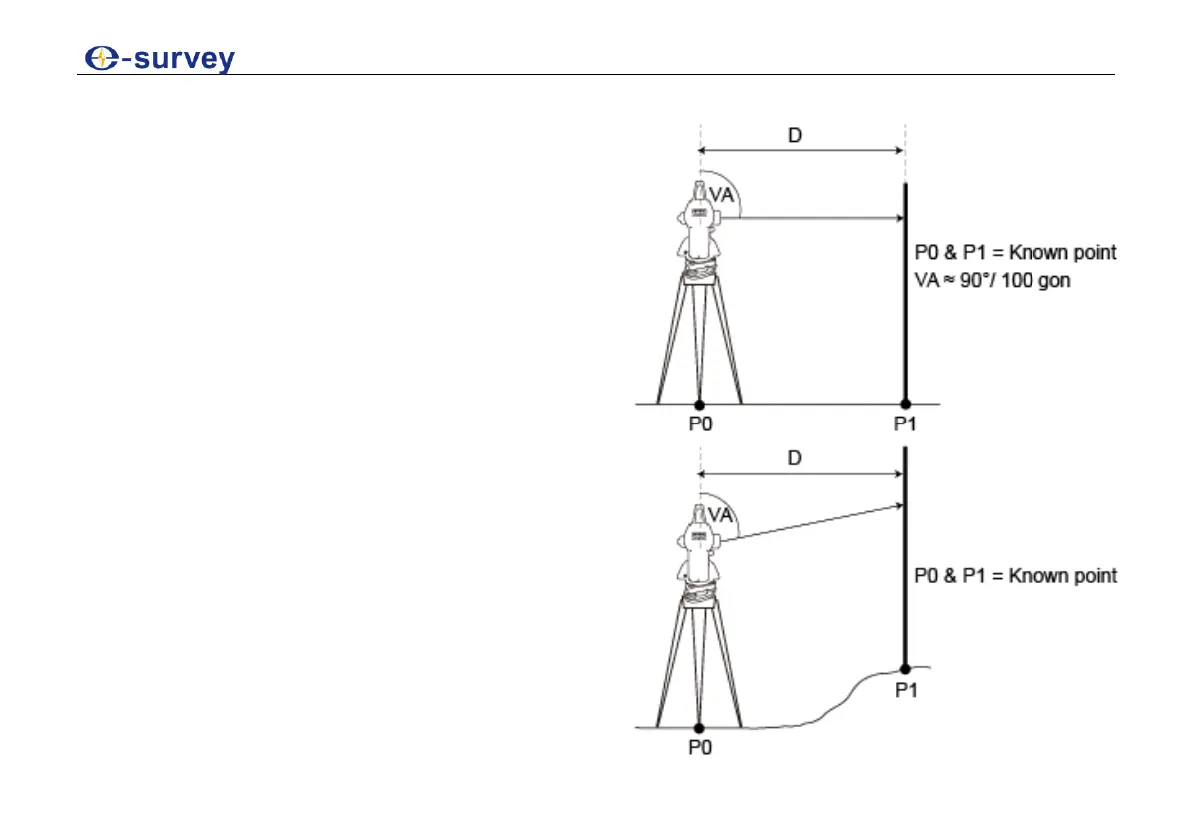

o If the zenith is 90° (the measurement
ground is flat), calculate distance D
following formula D = 100 * L:
100 refers to the stadia proportion
constant of the instrument.
o If the zenith is not 90° (the
measurement ground is curve),
calculate distance D following
formula D = 100 * L * sin
2
V:
