SHANGHAI ESURVEY GNSS CO., LTD.
44

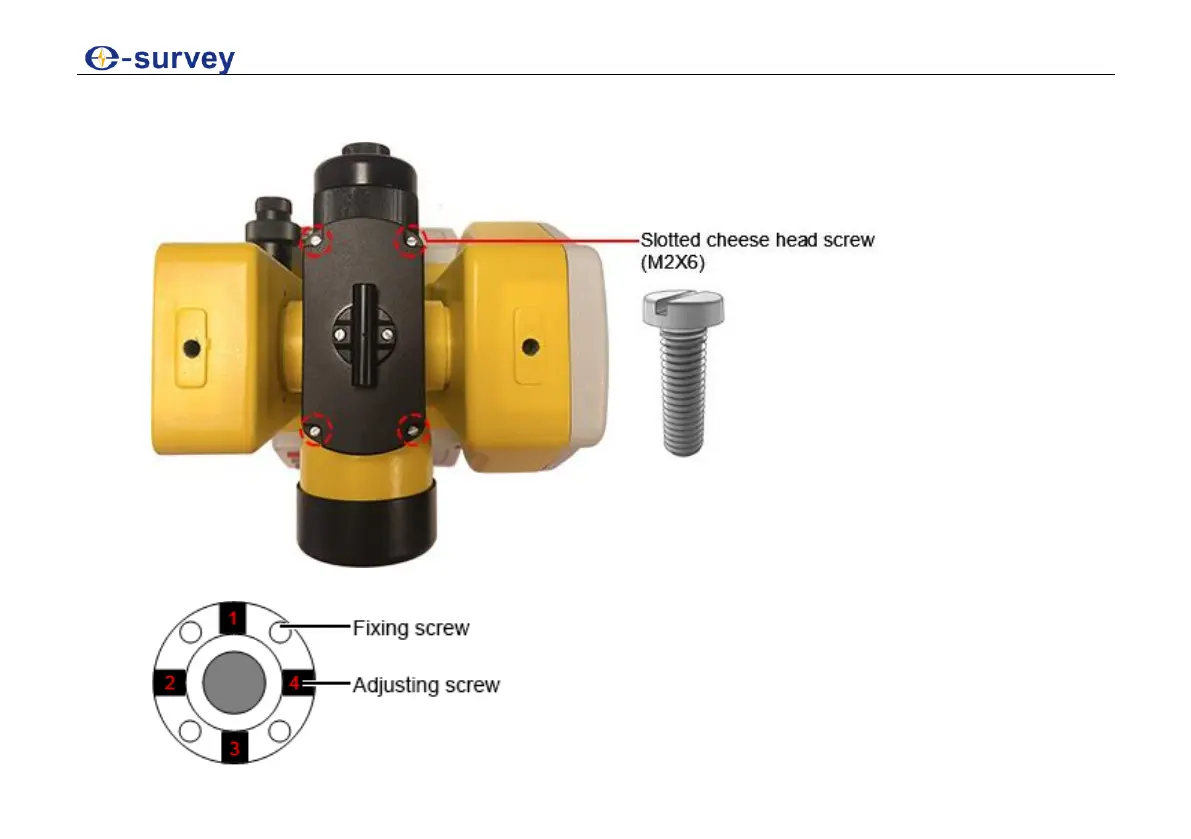

3. Demount the handle, unscrew four slotted cheese head screws (M2X6) that fix the cover of
the laser device, and remove the cover of the laser device:
4. To make the laser spot coincide with the target center, adjust the four adjusting screws:
