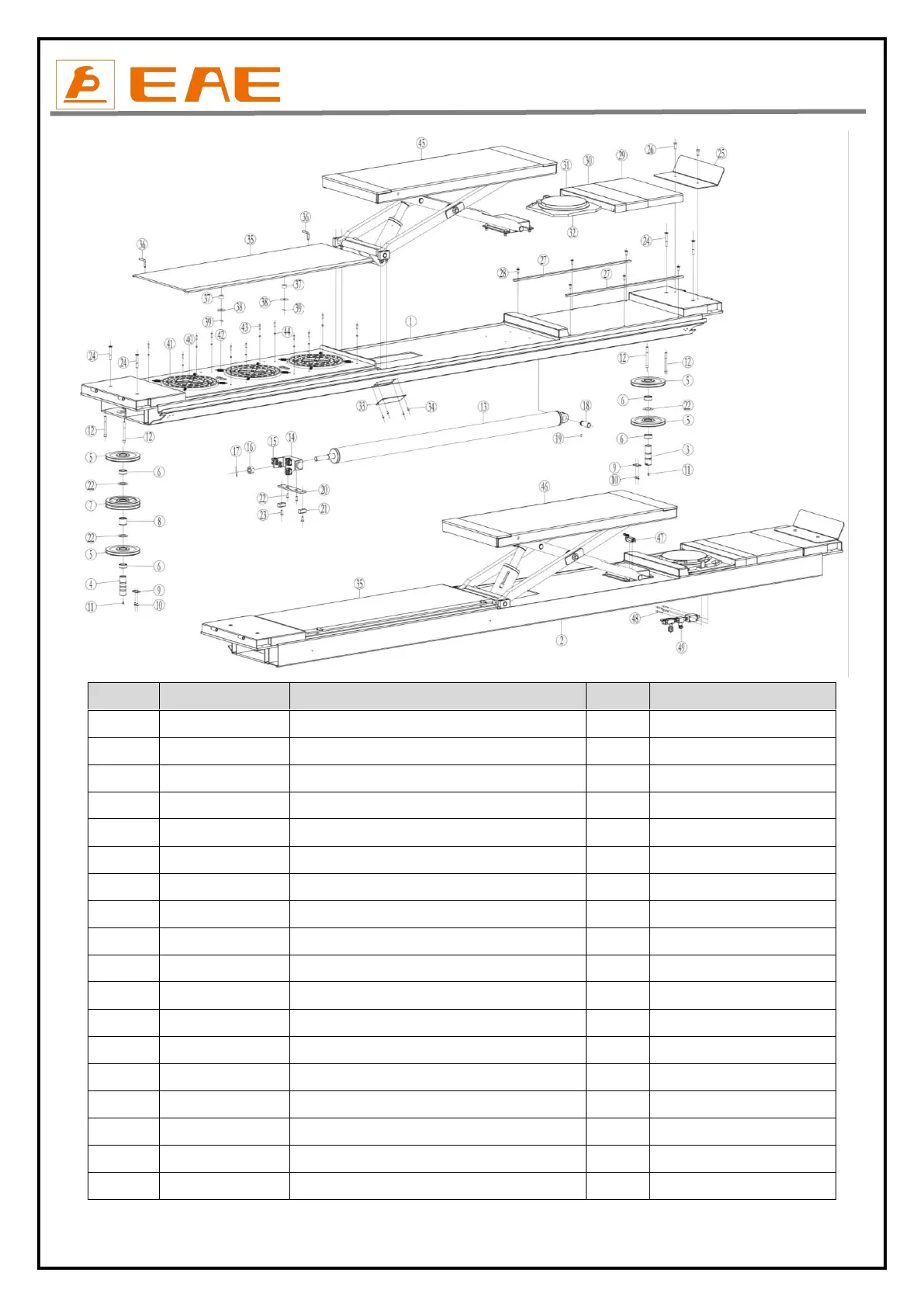

EAE EE-6435B.WF - Page 42

Installation, Operation and Parts Manual
EE-6435B .WF
42
Pos.
CODE
Name
QTY
NOTE
1
614027571
Platform A .57L.50T
1
57L.50T
1
614027573
Platform A .52L.50T
1
52L.51T
1
614027575
Platform A .48L.50T
1
48L.52T
1
614027577
Platform A .48L.40T
1
52L.40T
1
614027579
Platform A .48L.40T
1
48L.40T
2
614027572
Platform B .57L.50T
1
57L.50T
2
614027574
Platform B .52L.50T
1
52L.51T
2
614027576
Platform B .48L.50T
1
48L.52T
2
614027578
Platform B .48L.40T
1
52L.40T
2
614027580
Platform B .48L.40T
1
48L.40T
3
410292411
Pulley shaft B
1
4
410292421
Pulley shaft C
1
5
410274130
Pulley B
4
6
205101069B
Lubrication bearing 40*50*23
4
7
410274140
Pulley C
1
8
205101070
Lubrication bearing 40*50*40
1
9
410270101
Shaft retaining block
2
10
202110004
Hex socket button head screw M 8*12
4
