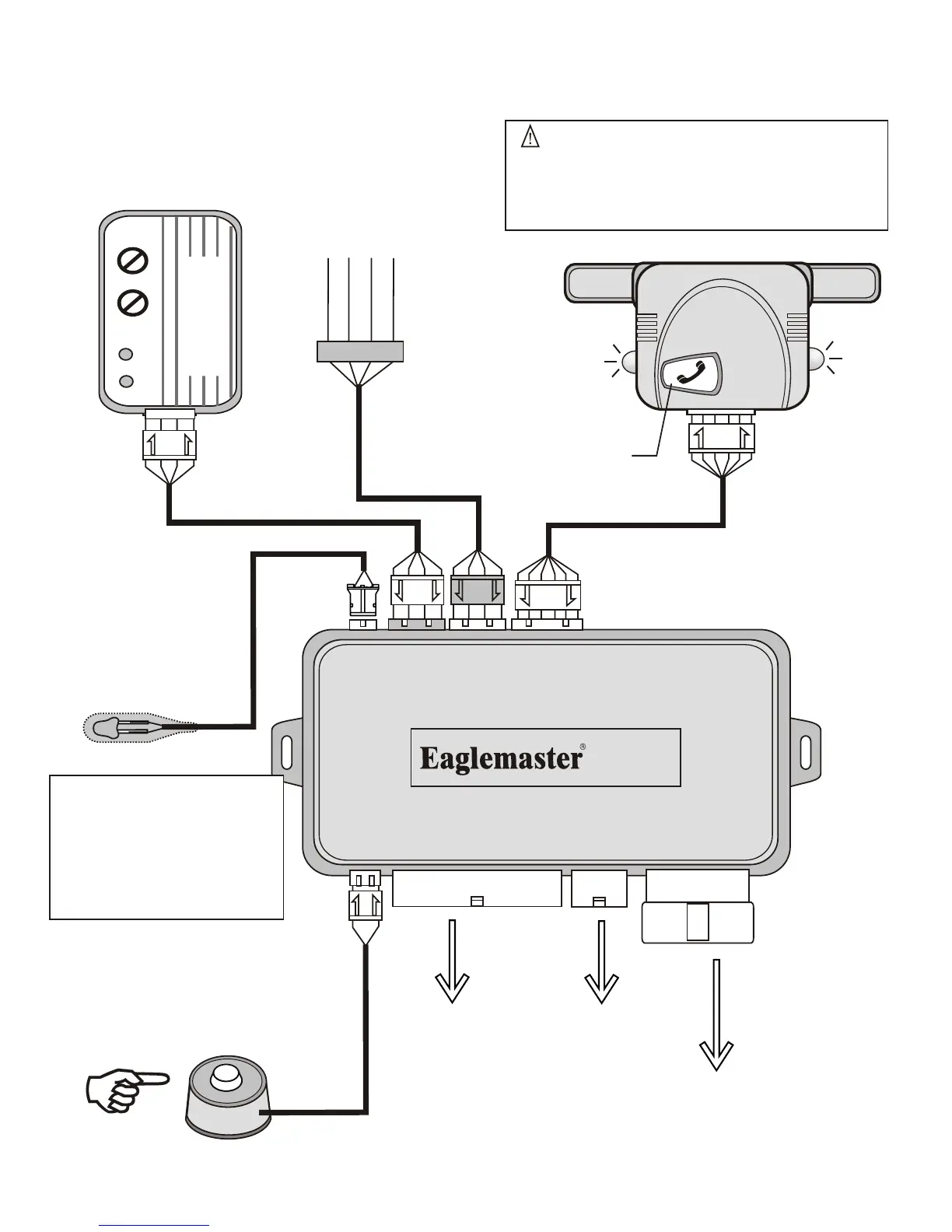

Eaglemaster E8 - WIRING DIAGRAM; ▲ Antenna; ZONE1; ZONE2

External
Ultra sonic &
micro-wave
sensor port
2nd stage (-) trigger
1st stage(-) trigger
- Ground
+12V DC output
Green Blue Black Red
Antenna
Extend the whole wire, align it with the intersection
of dashboard and the front window glass.
Keep it away from the metal at least 5 cm to have
the best receiving condition.
Push button
Call switch
LED
indicator
LED
indicator
12
Dual-stage/zone
Shock Sensor
Plug-in dual stage
shock sensor
ZONE1
ZONE2
External
Temperature
Sensor
Use external temperature
sensor for measurement of
engine temperature or
temperature in the given
point of car compartment.
Install the sensor in nearby
engine .
Plug-in Valet/ over-ride switch
20-PIN CON2
Main connector
wiring
6-PIN CON3
Connector
for door lock
wiring
6-PIN CON1
Connector
for Engine start
wiring
WIRING DIAGRAM :
Main control unit
E8
