Eaglemaster E8 - 20-PIN CON2 main connector wiring

1 2 3 4 5 6 7 8 9
10
11
20

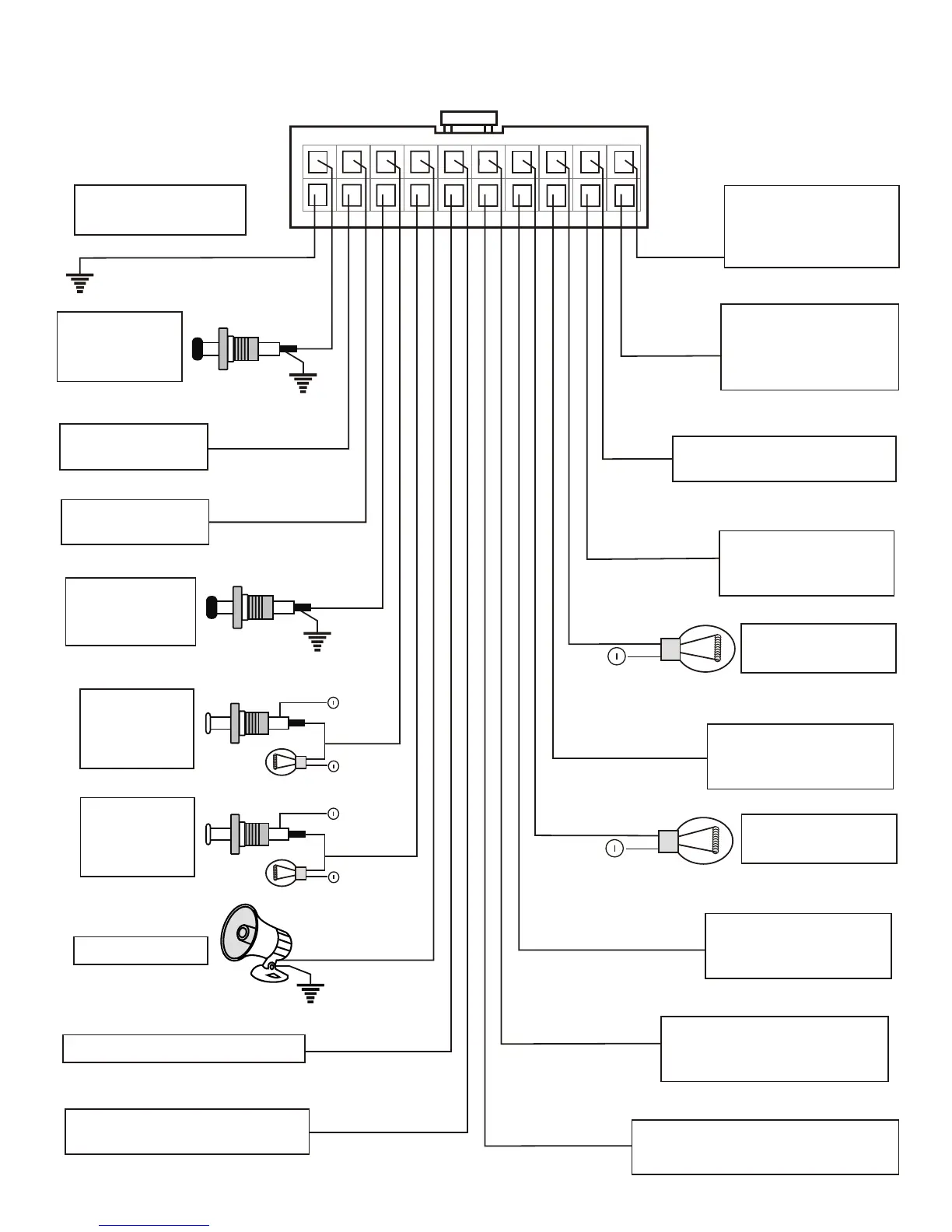

20-PIN CON2 main connector wiring
Yellow
Gray
White/black
White
Gray/black
Orange/black
Yellow/black
Black/white
Orange
White/red
Brown
Green
Purple
Blue
Blue/white
Green/white
Pink
Black
Red/black
White
Right side parking
light output
Left side parking
light output
Connect to (-)
negative Hood
pin switch
(-) 300mA negative
pulsed when
disarmed output
(killer2)
(-) negative input
Connect to the
Park switch gear in
the vehicle.
(-) CH-6
(-) Safety switch
(-) 500mA negative pulsed
output for Trunk open
(-) 500mA negative pulsed
when armed output (Killer1)
(-) 500mA negative
output 30sec. when
disarming.
(-) 500mA negative
pulsed output 30sec.
when arming.
(-) 500mA negative
pulsed output for 2nd
stage door unlock
(-) 500mA negative output
to disarm factory anti-
theft device
(-) 500mA negative output when
active engine run and start on .
(-) CH-1 (prog.)
(-) CH-5 (prog.)
(-) CH-2 (prog.)
(-) CH-3 (prog.)
(-) CH-4 (prog.)
(-) Factory disarm output
(-) Original bypass output
Connect to Chassis
Ground (-)
Hand brake (-)
input
Foot brake (+)
input
Connect to (-)
negative Trunk
pin switch
Engine control input (prog.)
By tachometer or generator
(+) Siren output
Connect to
Existing (+)
Positive
Door Switch
Connect to
Existing (-)
Negative
Door Switch
