EasyIO FW Series User Reference v3.0
9

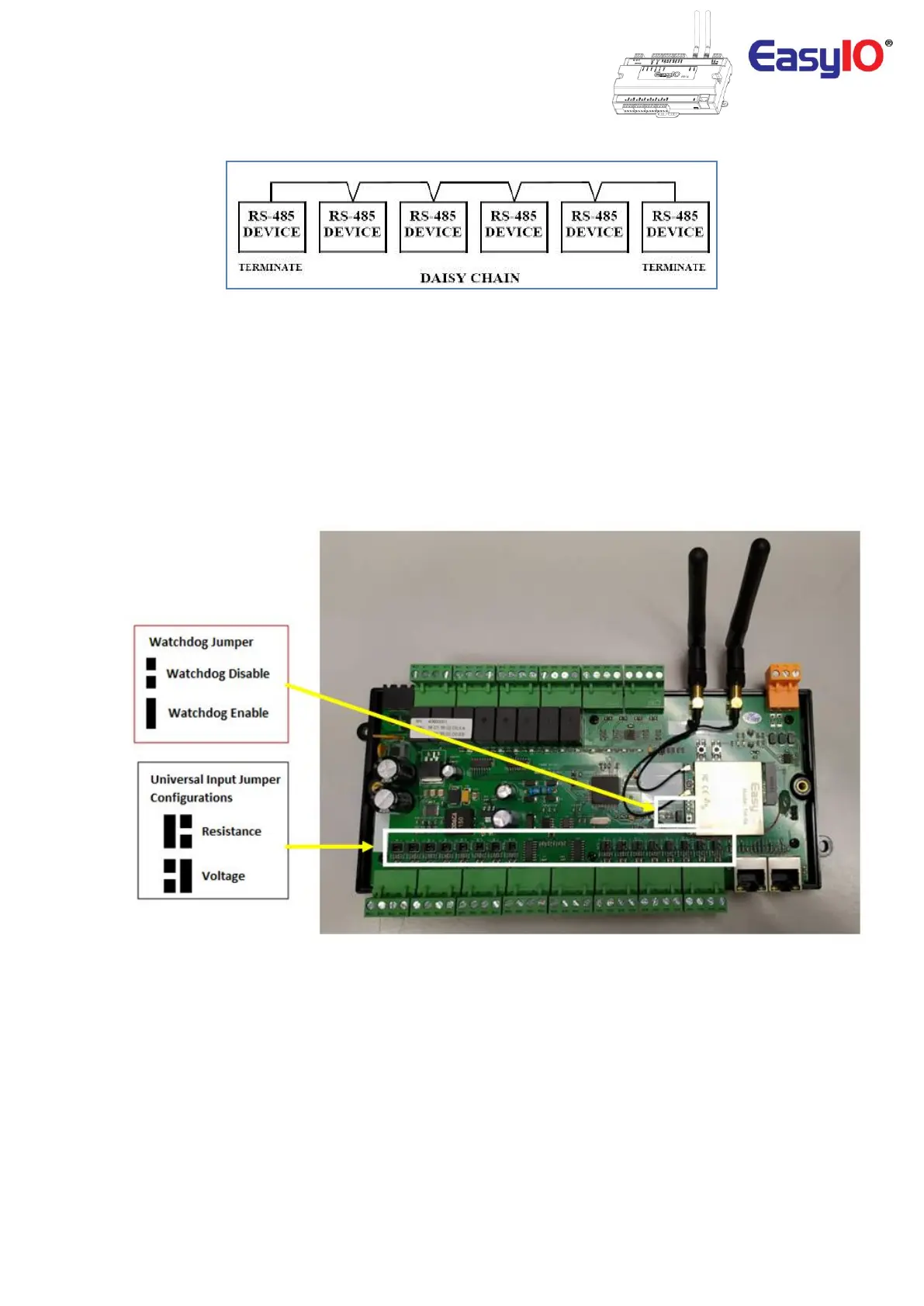

Daisy Chain Network Topology
Jumpers Configurations
FW-28
Below image shows the jumper setting for Universal Input and Watchdog Jumper
