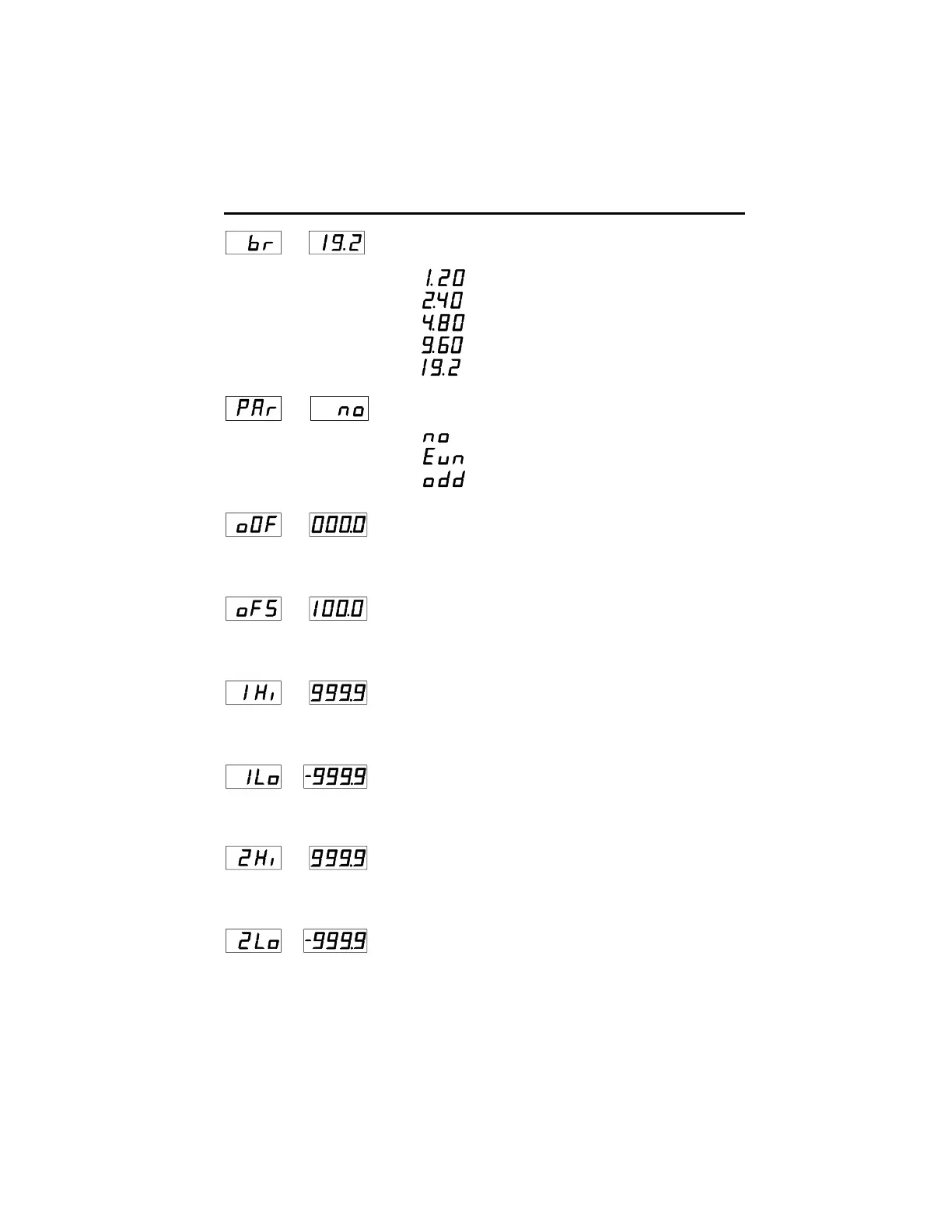

PROGRAMMING cont.
Baud Rate. Select the rate in kBaud at which
to receive and transmit serial information.
Parity. Select the type of parity used for
serial communications.
none
even
odd
Analog Output Offset Value. Enter the displayed
value that corresponds to the minimum analog
output (OV and 4 mA).
Range: -9999 to 9999.
Analog Output Full Scale Value. Enter the displayed
value that corresponds to the maximum analog
output (1OV and 20 mA).
Range: -9999 to 9999.
Relay 1 Low Alarm Setpoint. Enter the displayed
value at which relay 1 will turn ON if the display
goes below this value.
Range: -9999 to 9999.
Relay 1 High Alarm Setpoint. Enter the displayed
value at which relay 1 will turn ON if the display
goes above this value.
Range: -9999 to 9999.
Relay 2 High Alarm Setpoint. Enter the displayed
value at which relay 2 will turn ON if the display
goes above this value.
Range: -9999 to 9999.
Relay 2 Low Alarm Setpoint. Enter the displayed
value at which relay 2 will turn ON if the display
goes below this value.
Range: -9999 to 9999.
