Eaton Durant Eclipse 5770 45 Series - Signal Input for AC;DC Voltage and Current; Signal Input for Process DPM

6

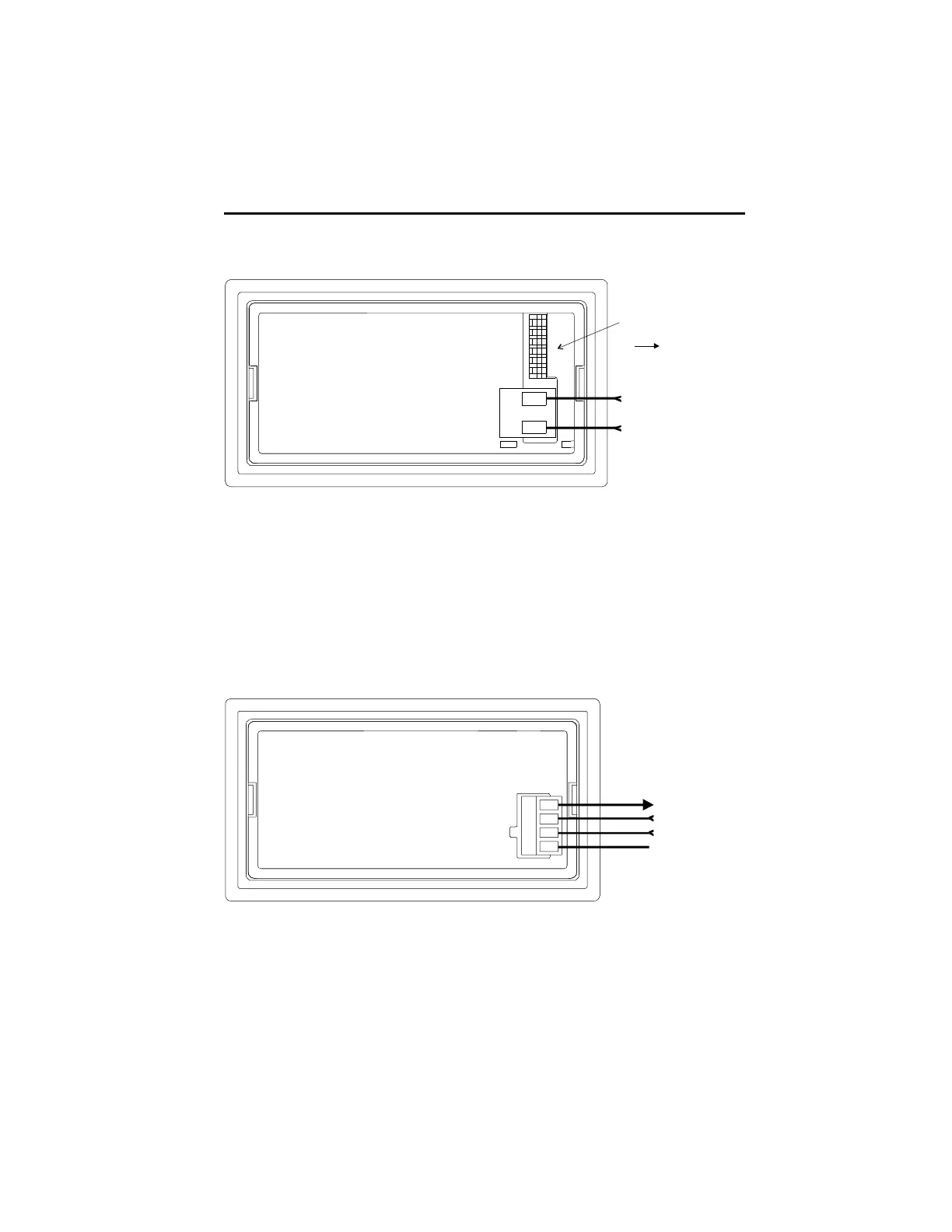

Signal Input for AC/DC Voltage and Current and 5A AC
1
Durant
®
2
3
DIP Switch
Positions
1 4
1
AC L1 or DC +
AC L2 or DC -
4
AC/DC Voltage and Current DIP switch selectable ranges:
Switch 4 ON - 200 V / 200 mA Switch 2 ON - 2.0 V / 2.0 mA
Switch 3 ON - 20 V / 20 mA Switch 1 ON - 0.2 V / 0.2 mA
See Specifications (pages 17-19) for Input Impedances and Overrange
Signal Input for Process DPM Model 5770X-45X
Durant
®
Use shielded cable
for input signal
(not shown)
+24 VDC Out
4-20 mA + In
0-10 V/1-5V + In
X
Common
24 VDC - Out
4-20 mA - In
0-10 V - In
(
)
1
24 VDC Transducer Output Power Ratings:
24 VDC, 90 mA maximum, short circuit protected
See Specifications (pages 17-19) for Input Impedances and Overrange
WIRING cont.
