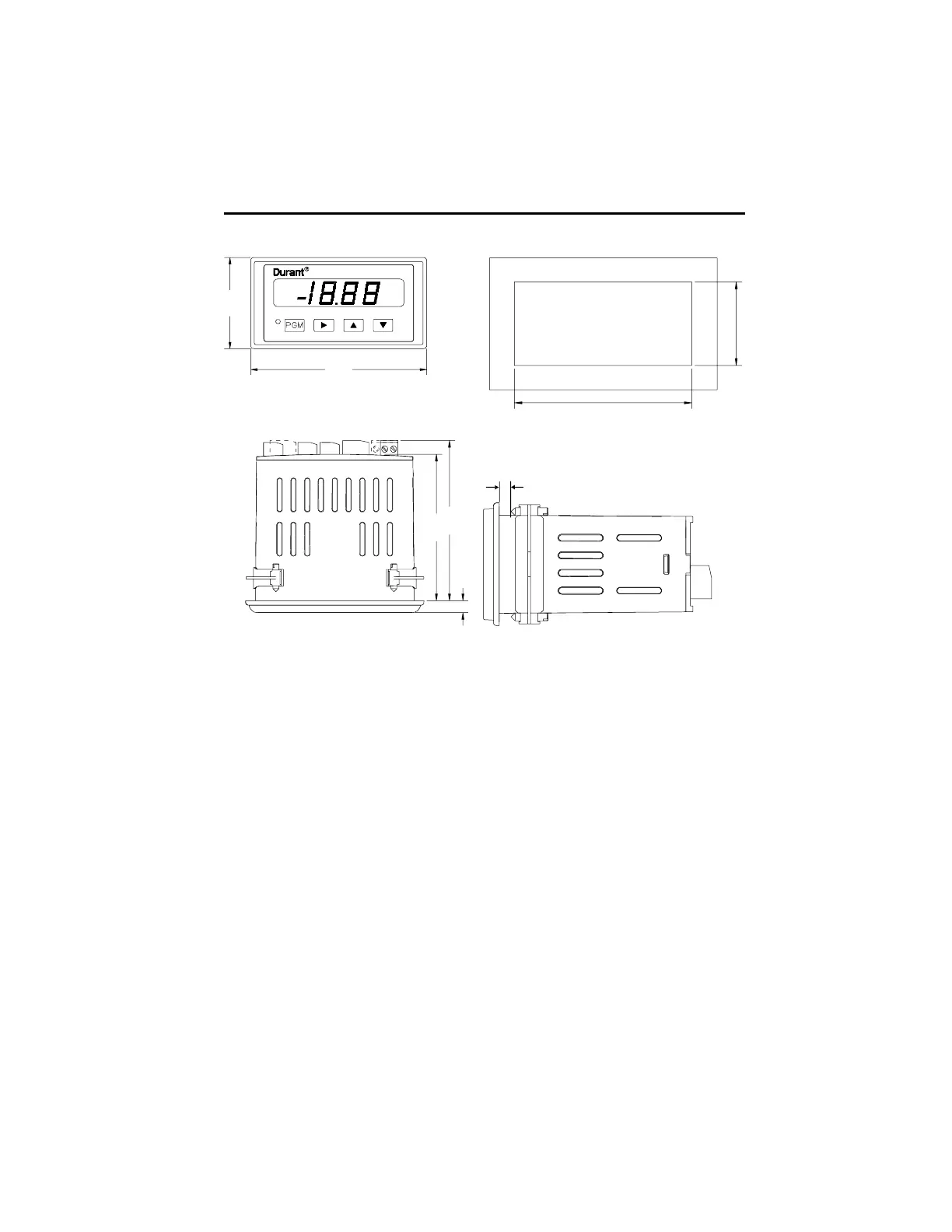

Mounting

Mounting clips and screws shown in installed positions.

Mounting Instructions

1. Slide mounting gasket (not shown) over unit body until adhesive surface

makes contact with the front bezel.

2. Slide unit into cutout in panel.

3. Attach mounting clips and screws.

4. Tighten screws until unit is firmly in place. DO NOT OVERTIGHTEN screws

to the point of squeezing the gasket out from behind the bezel.

MOUNTING

3.622 .031±

[92.0]

1.772 .024±

[45.0]

PANEL CUTOUT

MAX. PANEL THICKNESS .190 [4.8]

2.19

4.04

.27

3.63

3.31
