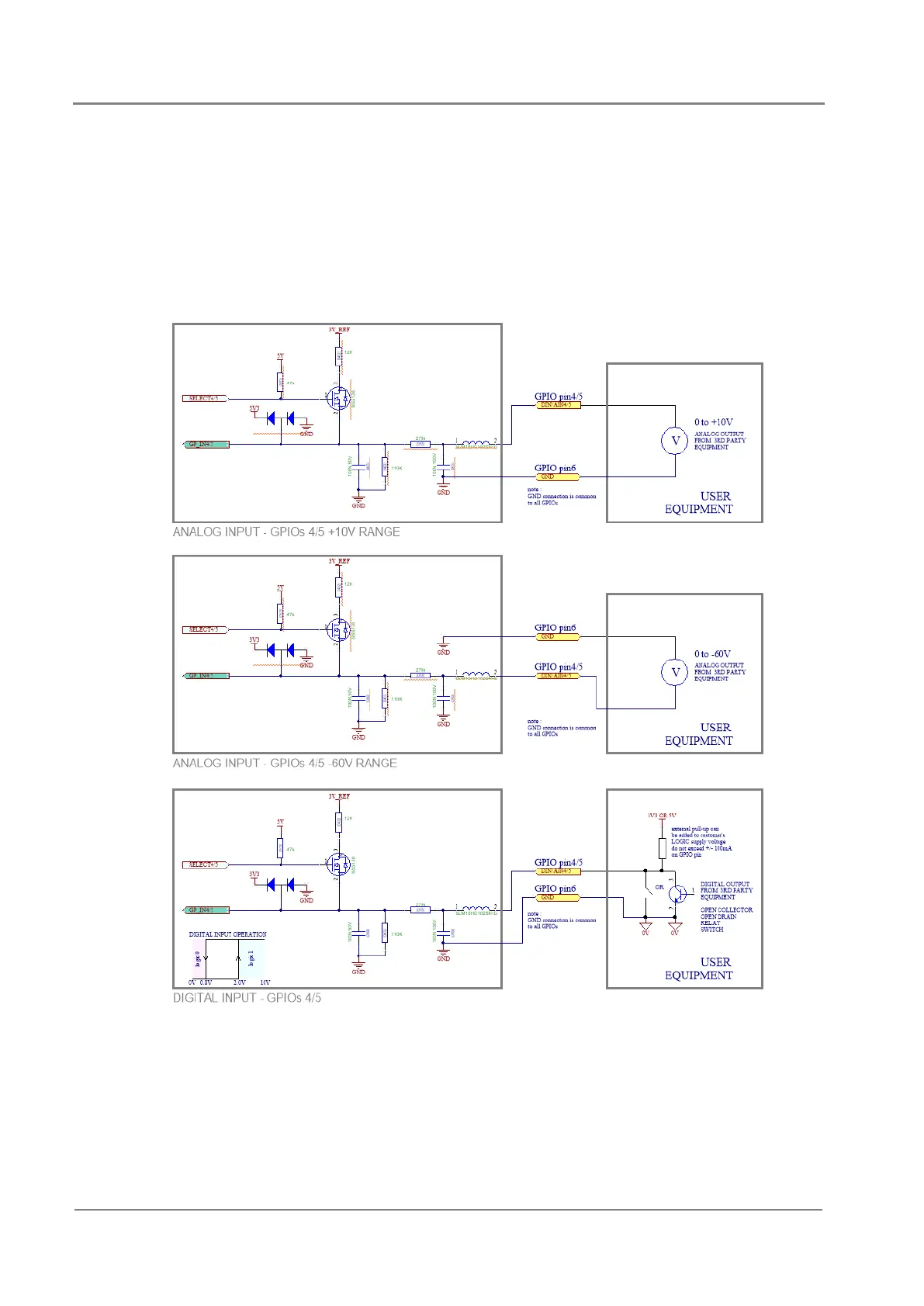

GPIO4 & 5
GPIO4 & 5 can be configured as digital inputs or analog inputs. When set as analog inputs there
are 2 possible voltage ranges :
• 0 to +10V – intended for general purpose analog inputs from sensors etc
• 0 to -60V – intended for battery midpoint sensing
