Copyright © 2019 Eaton Corporation. All Rights Reserved.
IPN March 2019
47

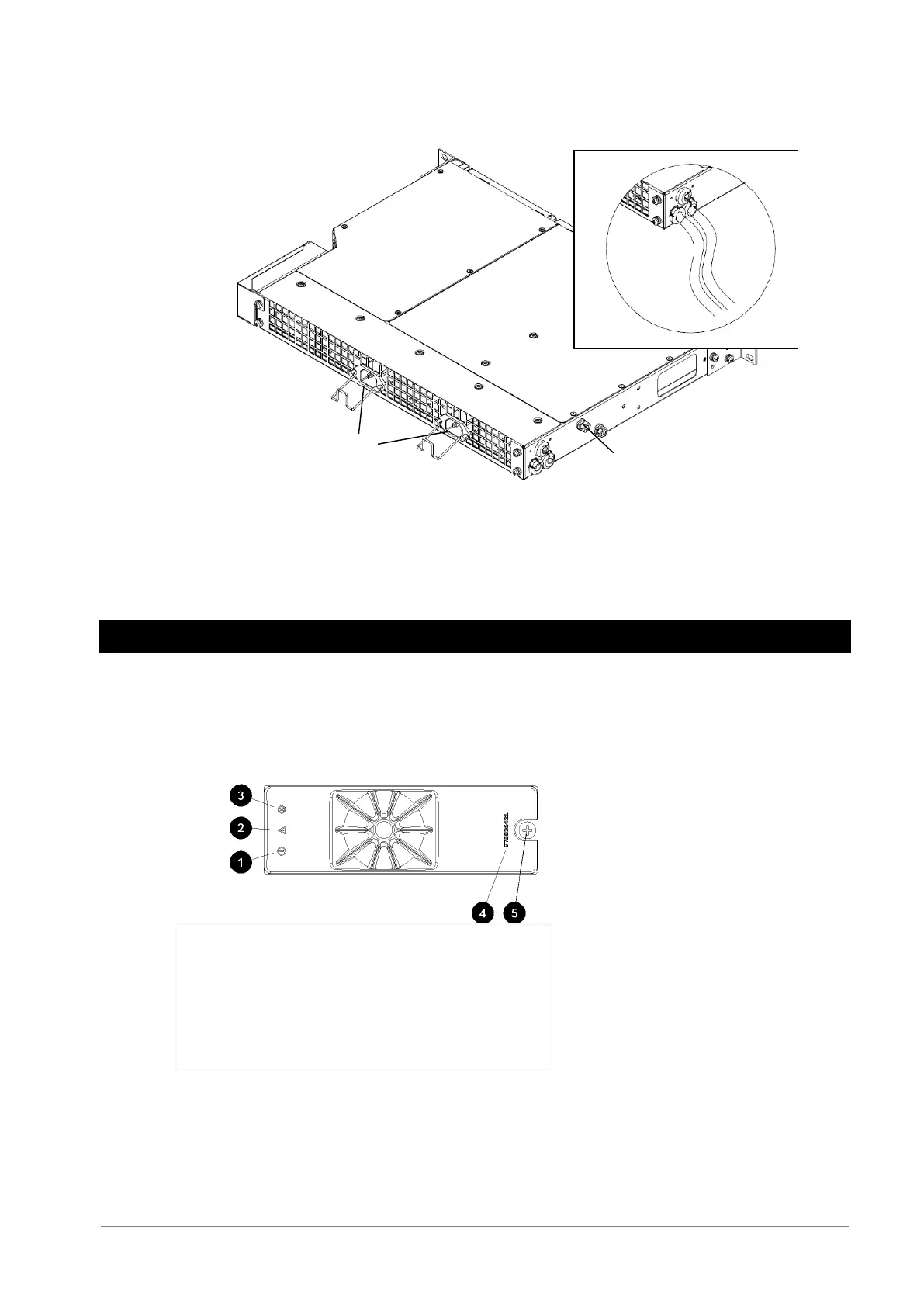

Rear View
AC cord sockets to suit IEC plugs, or (see inset)
ac cords fitted to some models (one per rectifier
position)
Protective earthing terminal (M6). See details on
page 59.
Rectifiers
RM3-340/440 Series are fitted with either 48V, 2000W (APR48-ES) rectifier. The rectifiers are fan
-cooled and hot -pluggable.
See Specifications on page 138 for further information. See Troubleshooting on page 120
for details of rectifier alarms.
Top: APR48-ES
Power On LED (Green)
Minor Alarm LED (Yellow)
Major Alarm LED (Red)
Serial Number
Retaining Screw. Tighten to 1.5Nm
(13.3 inch-pounds).
