Eaton RTLO-16918A-AS3 User Manual

PTO with Confirm Switched to Power
From To Description Notes
TCM - B-14 DPST - SW01 PTO Request
DPST - SW02 TCM - B-15 PTO Request
TCM - B-5 PTO Engage Relay -
86
PTO Engage
PTO Engage Relay -
85
TCM - B-2 PTO Engage
Vbatt DPST - SW03 PTO Power Vbatt should be fused to protect wiring
to
PTO and PTO.
DPST - SW04 PTO Engage Relay -
30
PTO Engage
PTO Engage Relay -
87
PTO - PTO-Power PTO Engage
PTO - PTO-Ground Chassis GND PTO Ground
PTO - PTO-Confirm
PTO Confirm Relay - 85 PTO Confirm Splice
PTO Lamp/LED - L(+)
PTO Lamp/LED - L(-) Chassis GND PTO Confirm
PTO Confirm Relay -
86
Chassis GND PTO Confirm Splice
PTO Confirm Relay -
30
PTO Confirm Relay -
87
TCM - B-16
PTO Confirm

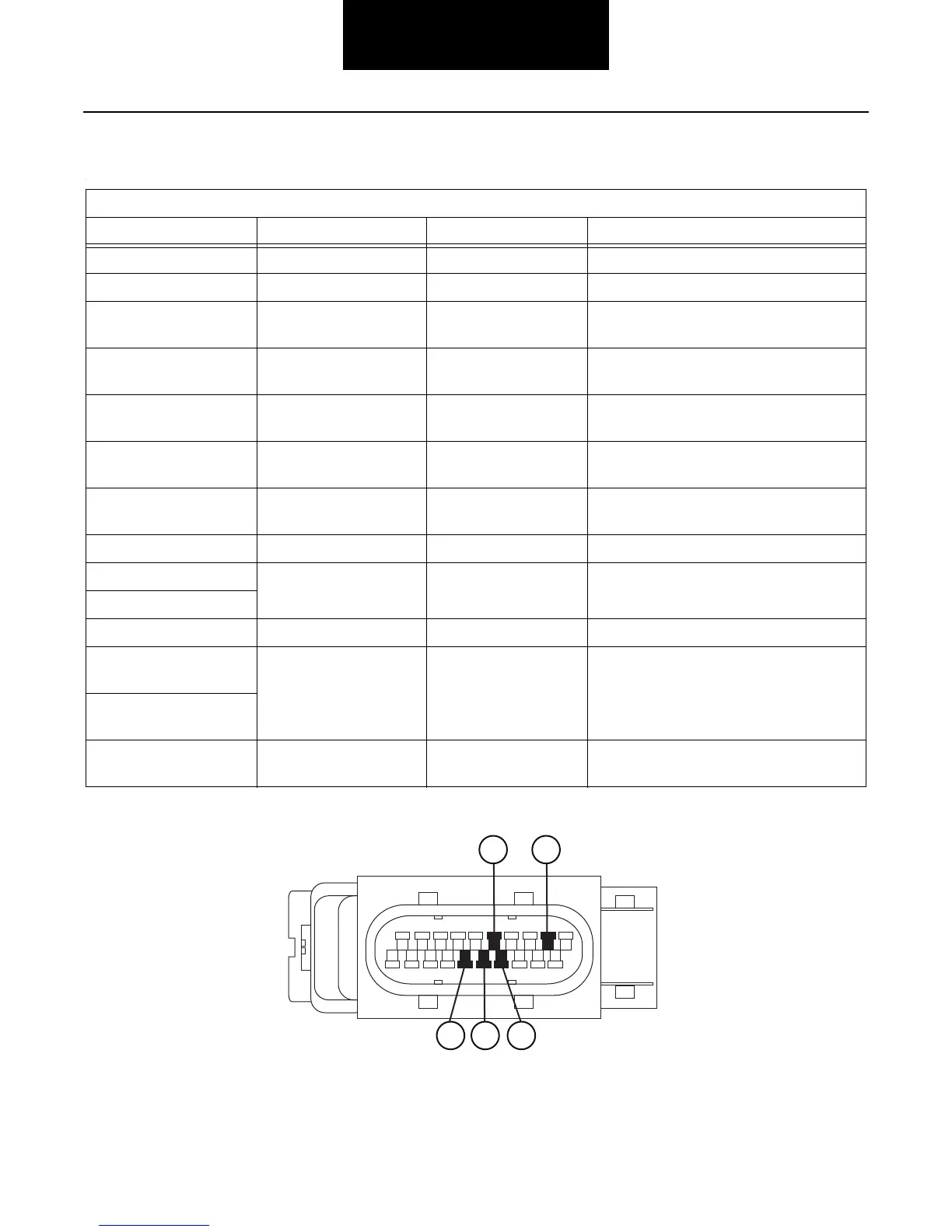

Connector B (TCM mating end)
20
10
19
9
18
8
17
7
16
6
15
5
14
4
13
3
12
2
11
1
16 15 14
25
47
PTO Interface
