Eaton RTLO-16918A-AS3 User Manual

B-2
(PTO ENGAGE)
B-16
(PTO CONFIRM)
VBATT
(Fused)
B-15 (PTO REQUEST)
PTO
Engage
Relay
PTO Lamp/LED
B-14 (RTN_2)
CHASSI S GROUND
CHASSI S GROUND
B-5 (RTN_1)
CHASSIS GROUND

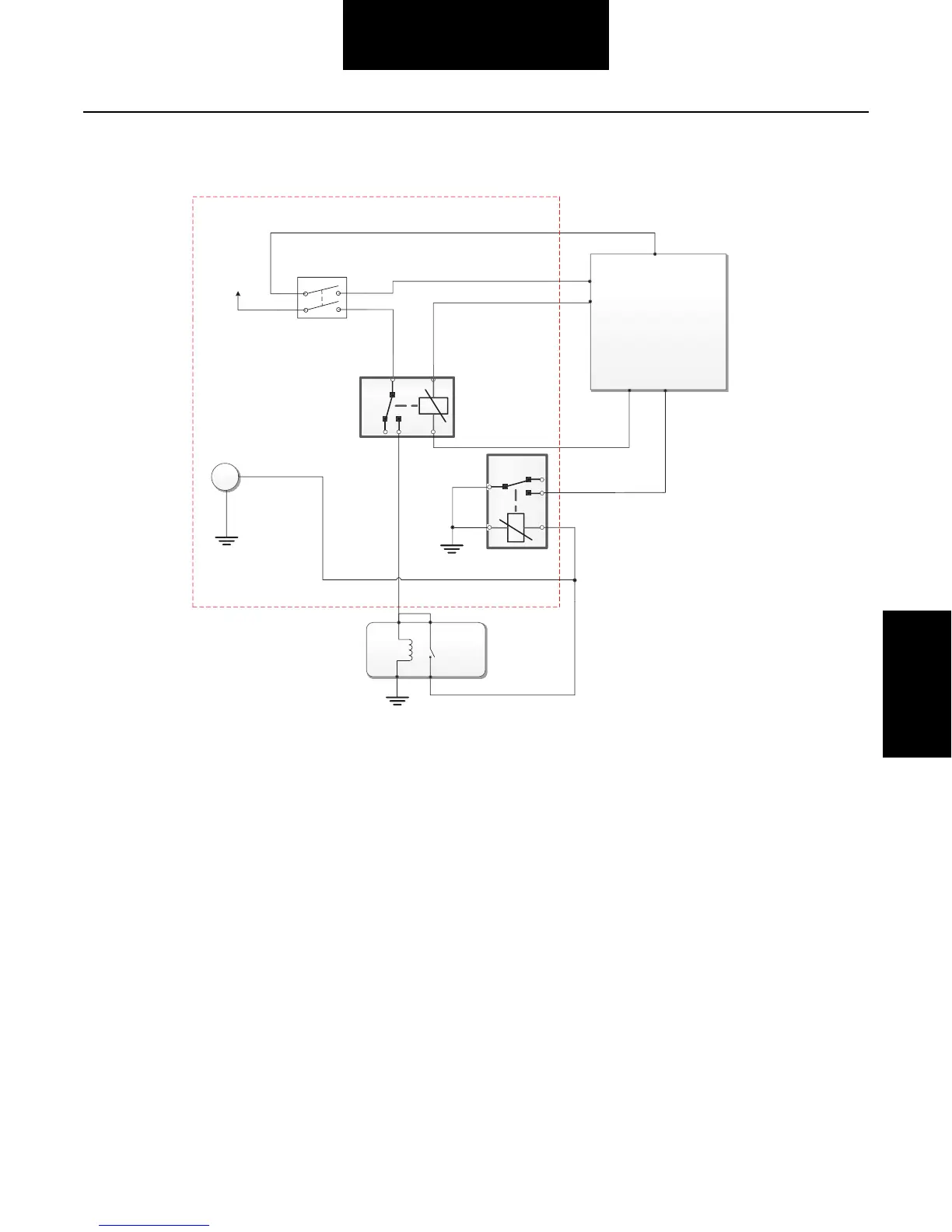

PTO w/Confirm Switched to Power
30
87
A
87
86
85
30
87
A
87
86
85
PTO
Confirm
Relay
PTO
Inside or on Dashboard
TCM
SW02
SW04
SW03
SW01
DPST
L(+)
L(-)
PTO-Power
PTO-Ground
PTO-Conrm
Contact Customer Support
Engineering for additional options
Switches shown in inactive posistion
46
PTO Interface
PTO Interface
