Inertia Brake
Inertia Brake
Remove Left Side Inertia Brake
1. Disconnect harness at 2 connector locations and remove ty-raps from inertia brake.
Note: Take
care not to damage harness. Protect connector ends from dirt contamination.
2. Disconnect oil hose from inertia
brake and transmission case.
3. Remove (6) mounting bolts
from the inertia brake.
Inertia brake is heavy. Be prepared to handle the weight of the brake when the bolts are removed.
There may be some residual oil in the inertia brake.
4. Remove the inertia brake, spacer plate, and gaskets from
the transmission.
Note: Clean and remove all old gasket material from the
mating surfaces of the inertia brake and transmission PTO openings.
Note: Some
transmissions may not use a spacer plate with the inertia brake.
5. Remove the 90º fitting and filter fitting from transmissio
n case that was connected to the oil supply hose.

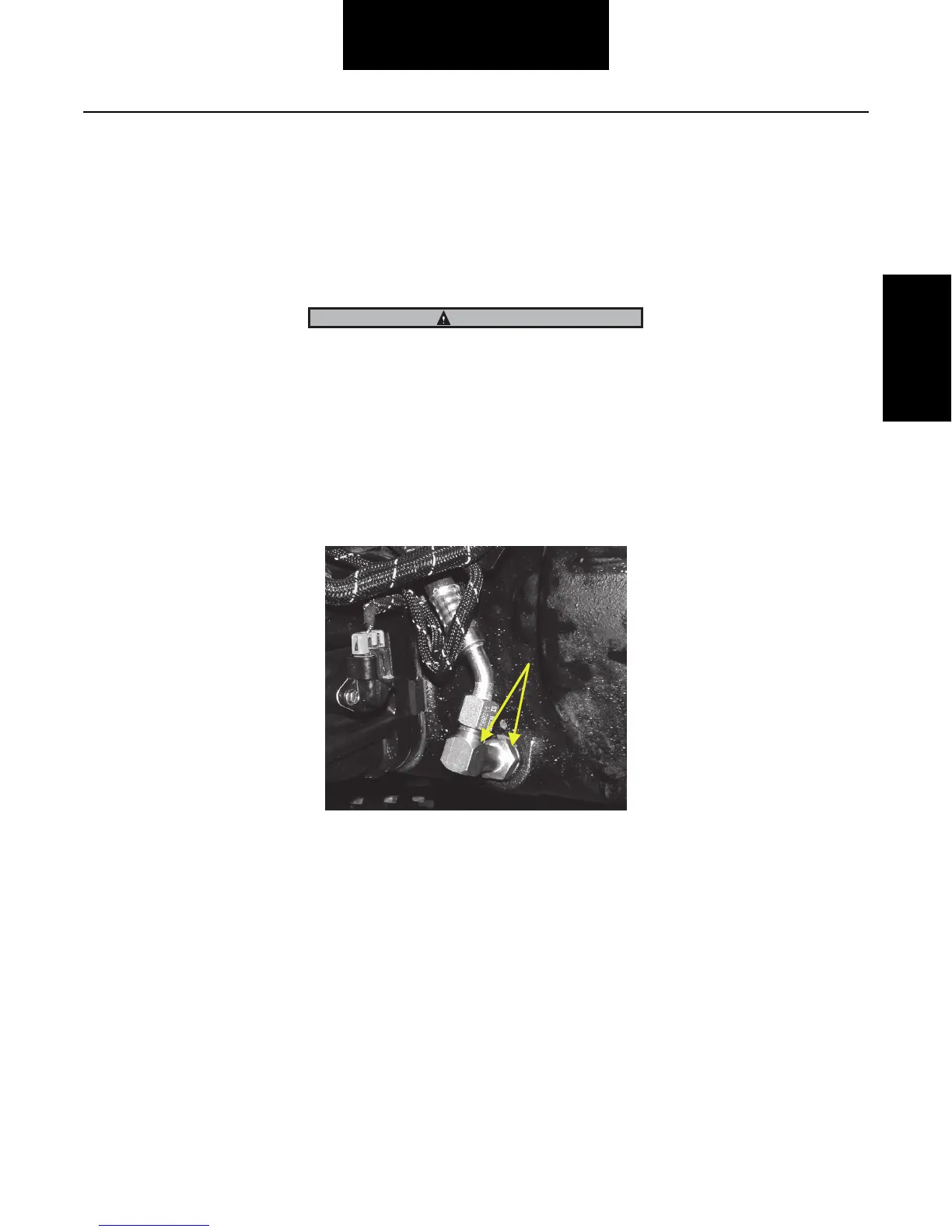

90deg fitting
and filter
fitting
Remove Right Side PTO Cover
1. Remove (6) bolts from the right side PTO cover.
2. Remove cover
Note: Clean and
remove all old gasket material from the mating surfaces of the PTO cover and opening on the transmission case.
To Next Page
