62
Inertia Brake
Inertia Brake

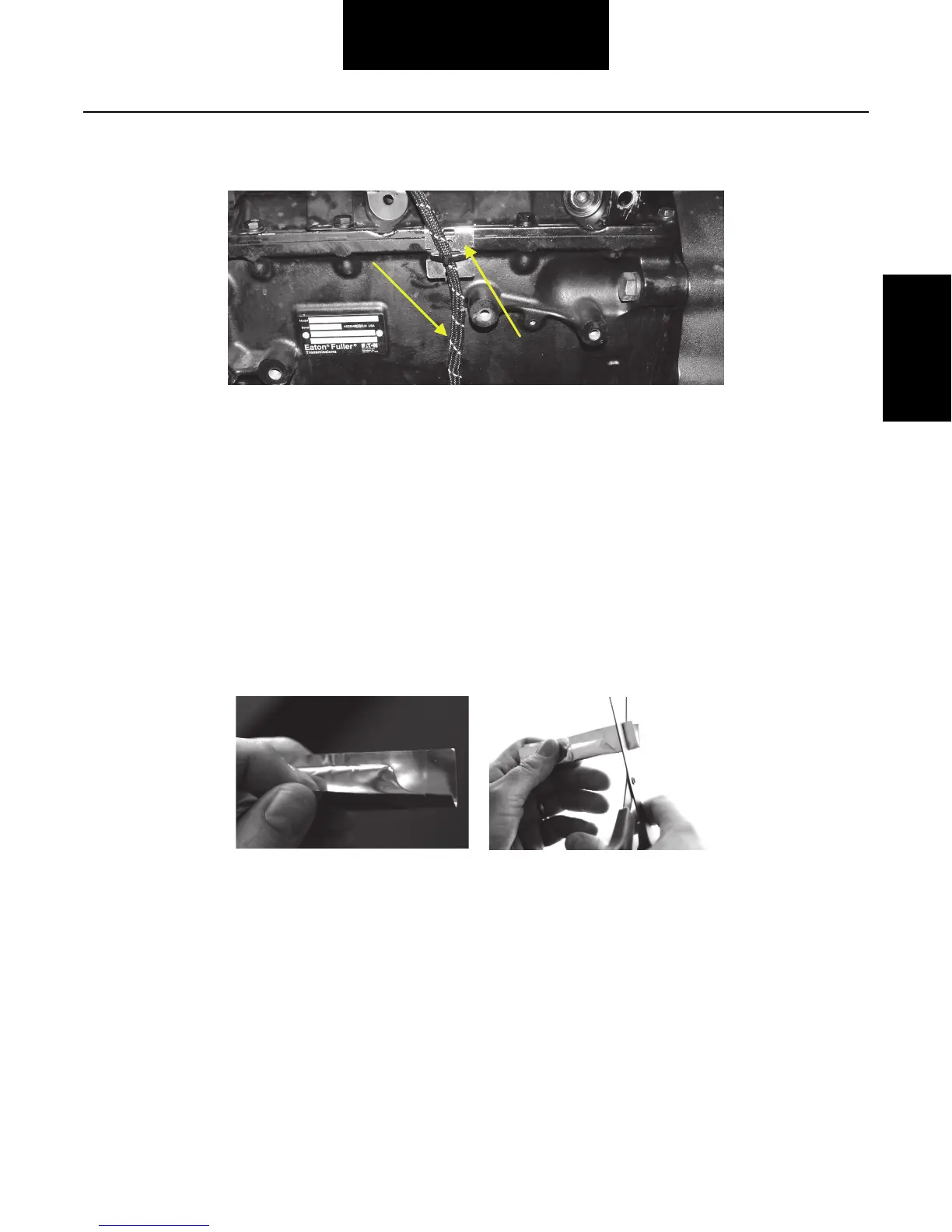

4. 4.Install harness strap bracket to the shift bar housing. Remove the shift bar housing bolt and place bracket as shown.
Torque shift bar housing bolt to 35-40 lb-ft (47-54 Nm).
Harness Strap
Bracket
Jumper
Harness
Install Jumper Harness
A jumper harness is supplied to connect between the transmission harness and the inertia brake connectors. Take care not to
damage the connectors during installation.
1. Inspect mating connector pins on transmission harness for damage or dirt. If pins
need cleaning, use clean shop air or
an approved spray cleaner specifically for electrical contacts.
2. Route the jumper harness over
the transmission with the correct connectors on the right side for the inertia brake and
the correct connectors on the left side for the harness.
3. Using the enclosed package of wire harness terminal lubrica
nt (nyogel), lubricate the harness connectors using the fol-
lowing procedure:
Note: T
he connector should be connected immediately after terminal lubrication is applied.
a. To ease dispensing, fold and cut package as shown.
b. Dispense a small amount of lubricant onto each terminal of
harness as shown in the figure. The amount should be just
enough to cover the end of the contact. Use care to prevent damage to the terminal. Apply to all female terminals on all
connectors, but attach connector immediately after applying lubrication.
To Next Page
