Chapter 4: Handling, storage, and installation
SC9000 EP medium voltage drives IB020001EN—February 2016 www.eaton.com 13

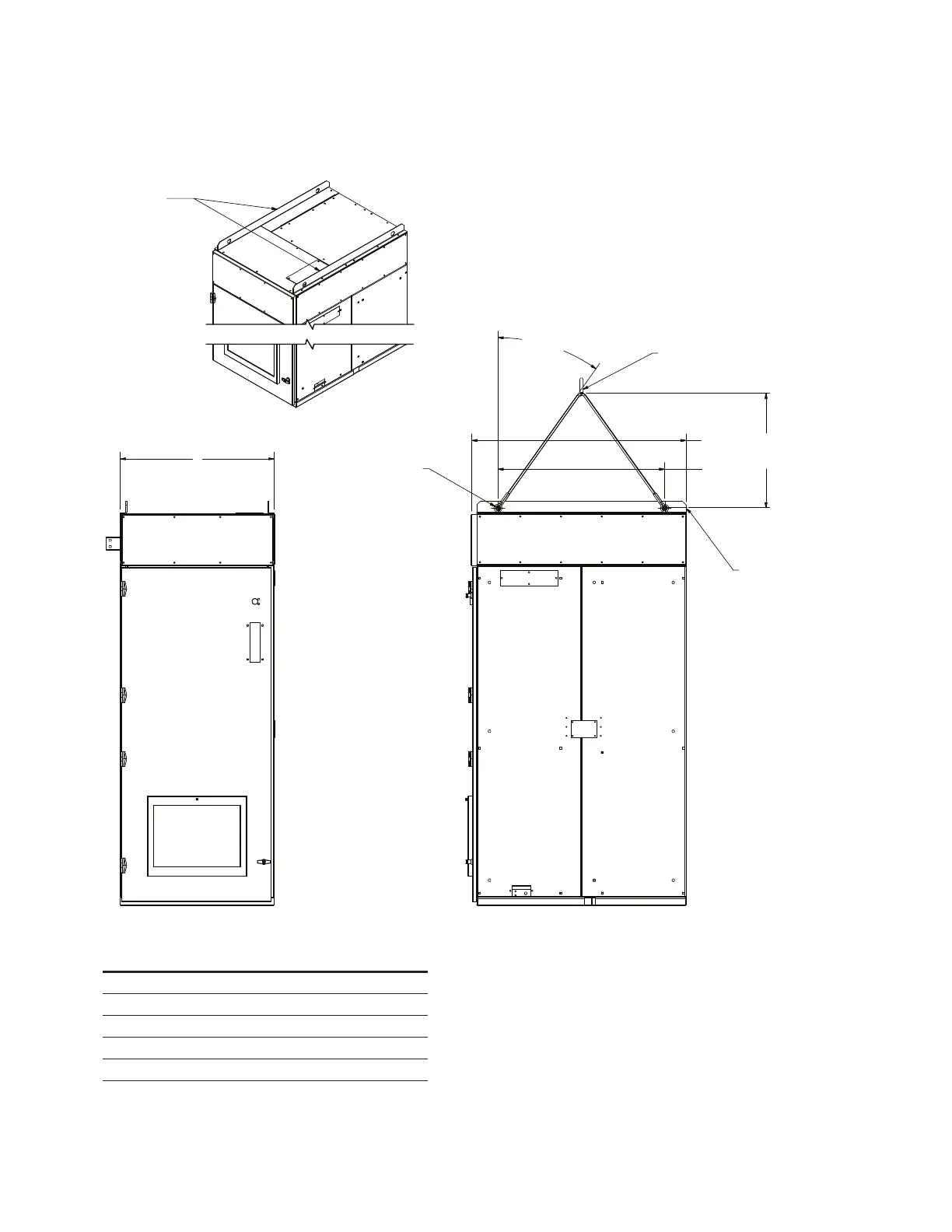

Figure 1. Frame B inverter section, Frame C main disconnect and inverter sections, Frame D main disconnect,
and inverter sections, Frame E main disconnect section, and filters
“A” width dimensions
Frame C/D/E incoming 36 inches
dV/dt filters up to 500 hp 24 inches
Frame B/C/D inverter 30 or 36 inches
dV/dt filters 600 to 2500 hp 36 inches
Output reactors and sine filters 40 inches
Front view RH side view
Lift angles
provided
by Eaton
39 inches
50 inches
Ø1.50 x 4
45°
max.
A
Lift point
Lift angle
19.50
min.
