Eaton SC9000 EP - Figure 3. Frame C, Frame D, and Frame E Transformer Section Overhead Lifting

Chapter 4: Handling, storage, and installation
SC9000 EP medium voltage drives IB020001EN—February 2016 www.eaton.com 15

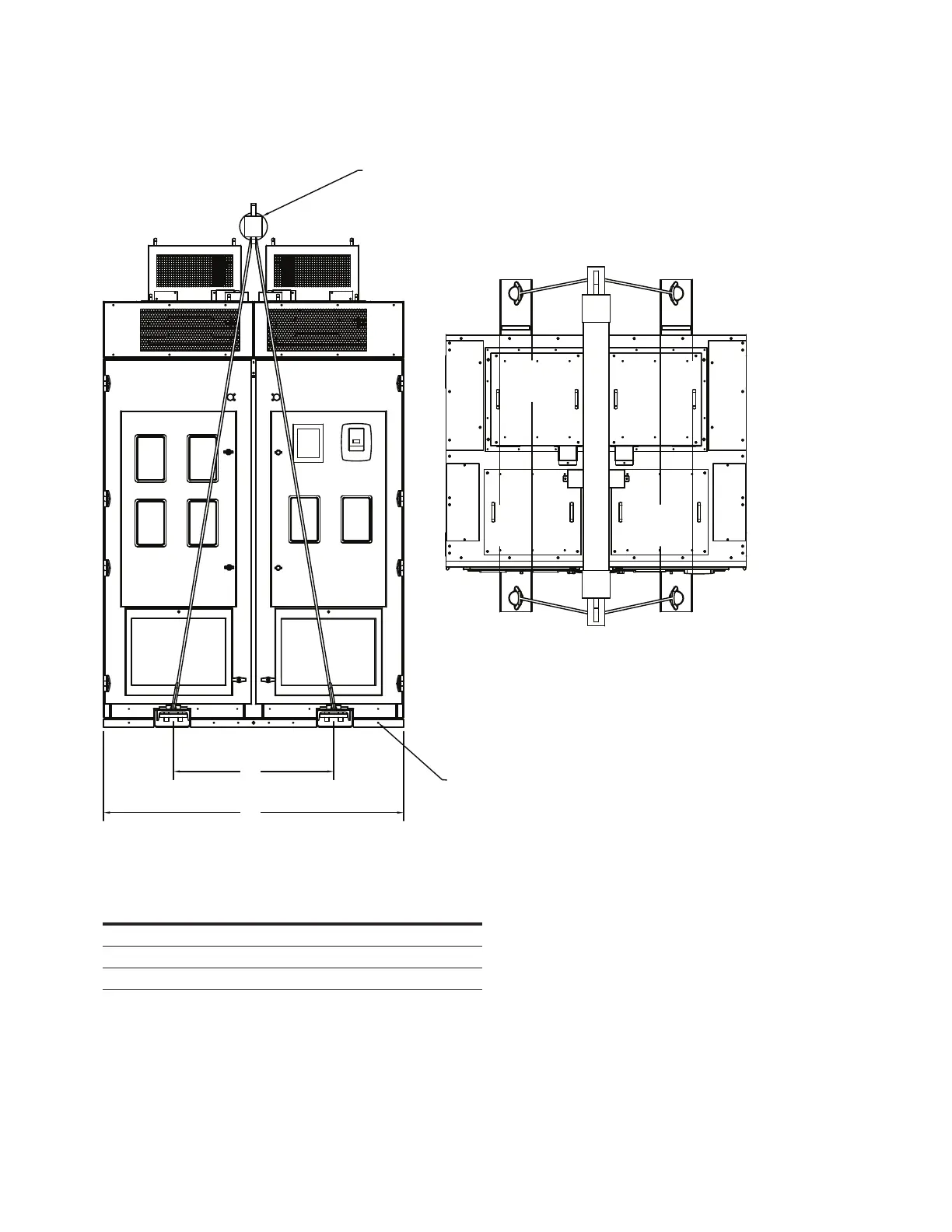

Figure 3. Frame C, Frame D, and Frame E transformer section overhead lifting
Top view
Front view
Spreader bar
Remove cover plates
front and rear to
insert lifting channels
A
B
A and B Dimensions
Unit A Dimension B Dimension
Frame C converter 34.75 inches 65 inches
Frame D converter 40.5 inches 76 inches
Frame E converter 50 inches 100 inches
