Appendix A: Typical Frames A, B, C
36 SC9000 EP medium voltage drives IB020001EN—February 2016 www.eaton.com

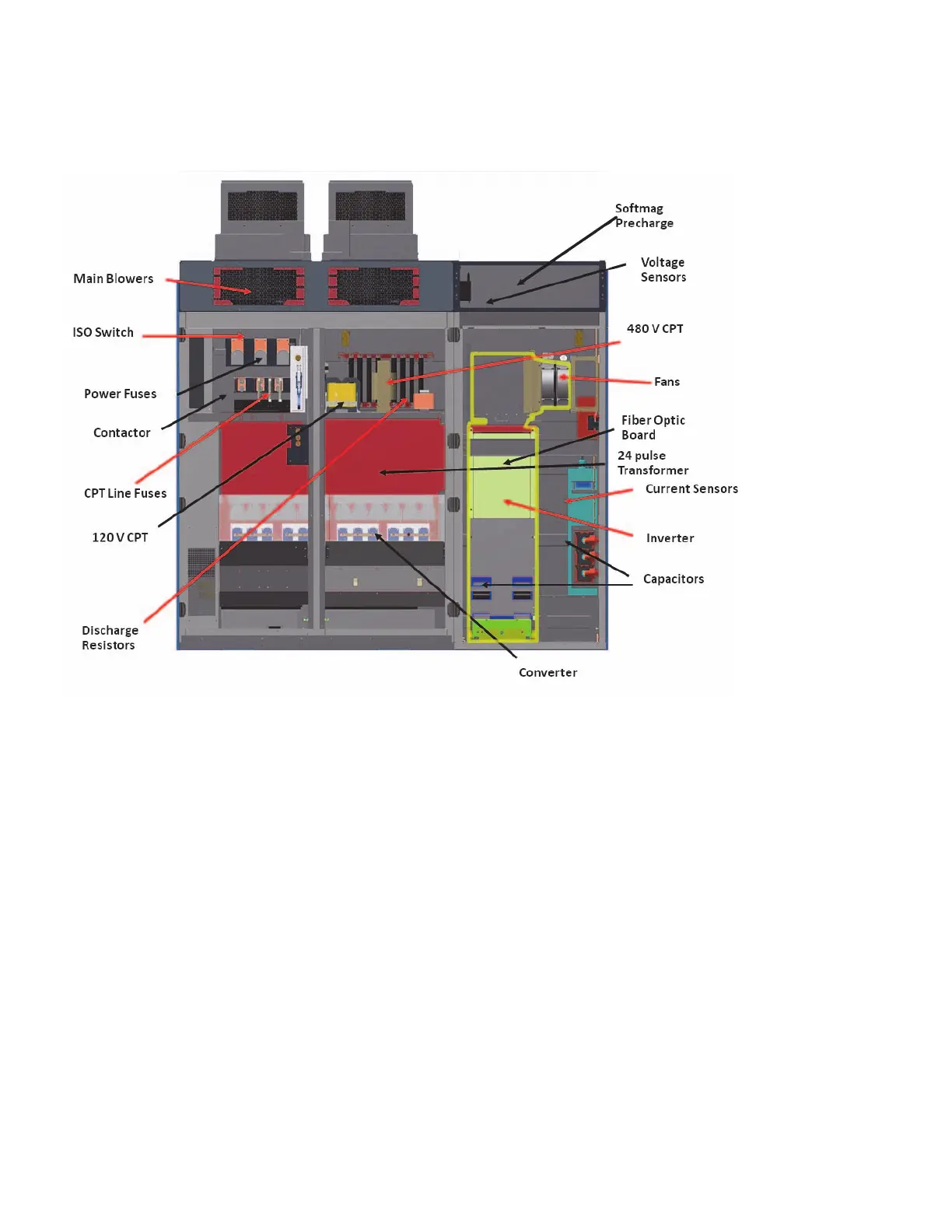

Figure 30. Frame B parts layout—SC9000 EP
