User manual SEFELEC 5x Series 112 v1.06

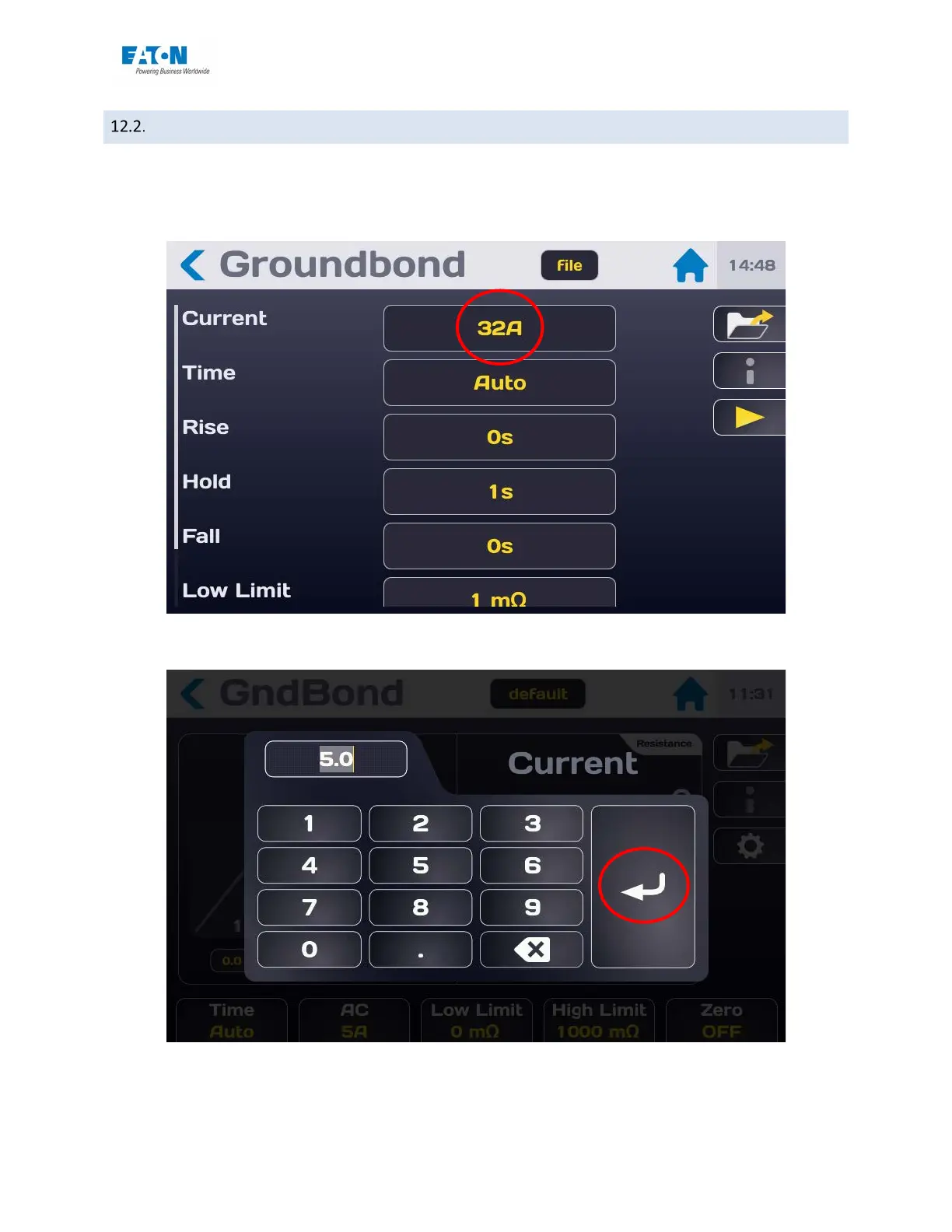

ADJUSTING THE MEASUREMENT CURRENT
From the settings menu or by the current short cut key at the bottom of the measuring screen
press the active area of the Current line:
To obtain the following screen:
Enter a current between 5 and 32 A AC (50 A AC on option) if the value entered is outside the
permitted limits it is shown in red. Press the enter key to validate the entry and return to the pre-
vious menu.
