Eaton SEFELEC 56-H - Procedure to be Followed

User manual SEFELEC 5x Series 171 v1.06
17.4.1. PROCEDURE TO BE FOLLOWED

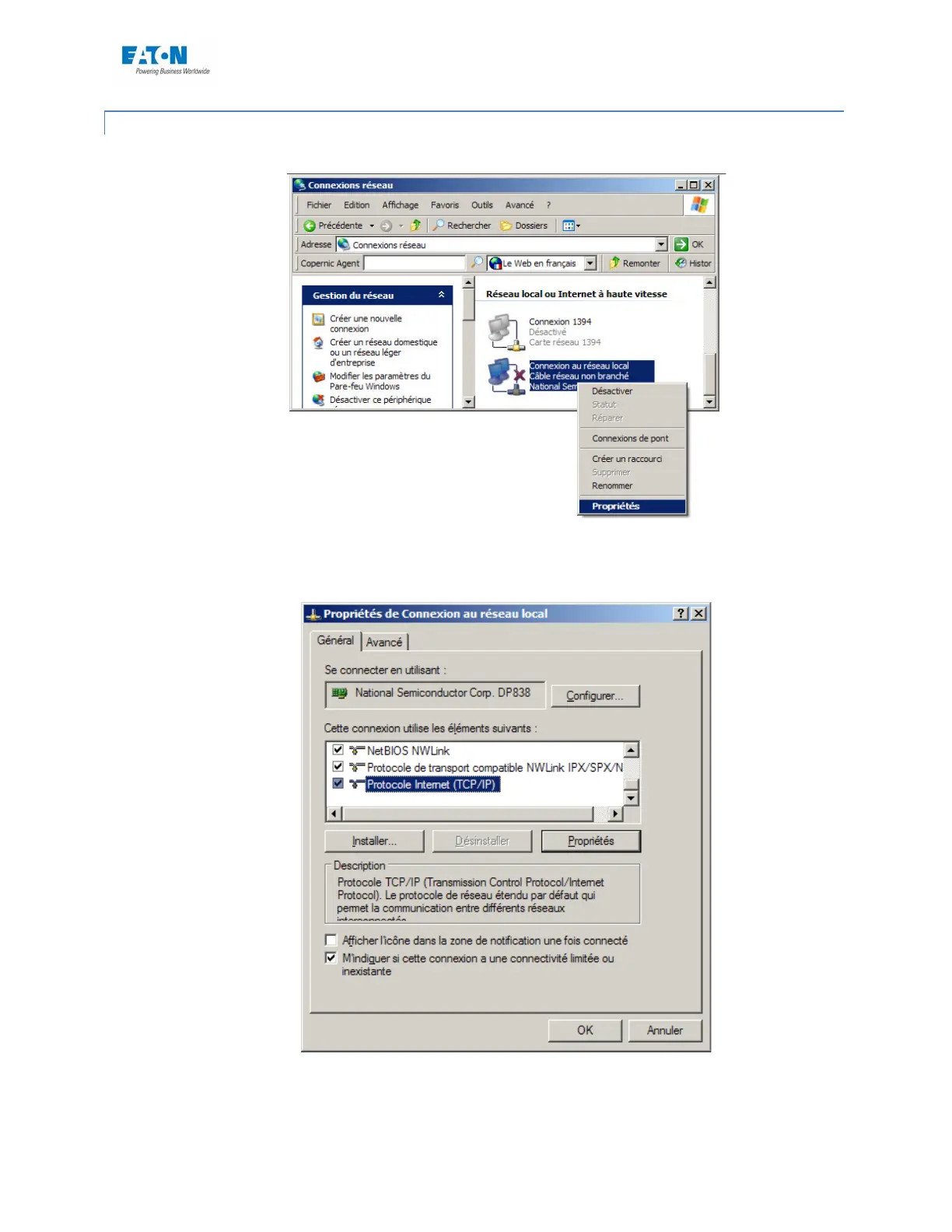

Go to the Control Panel/ Network Connections/ Properties
- Select Internet Protocol (TCP/IP) in the fields "This Internet connection uses the follow-
ing items:" and then click on Properties
-
Select: Use the following IP address:
Enter the IP address of the network card (PC) (e.g.: 192.168.0.1)
Enter your subnet mask (e.g.: 255.255.255.0)
