User manual SEFELEC 5x Series 43 v1.06

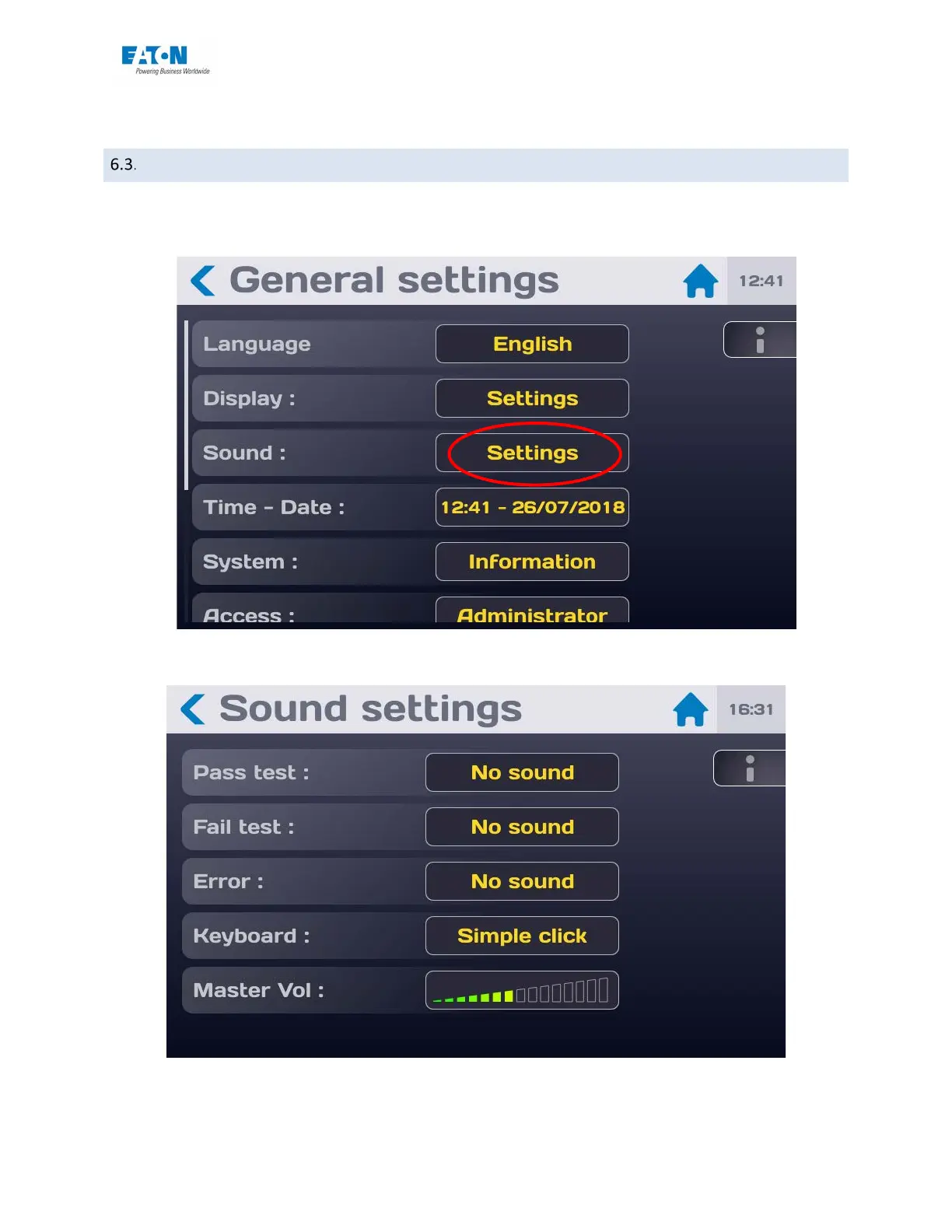

SOUND SETTINGS

In the "General settings" menu press the “Settings” area of the "Sound" line:

To obtain the following screen:

Choose the different sound possibilities for the proposed actions.
