User manual SEFELEC 5x Series 63 v1.06
ADJUSTING THE MEASUREMENT VOLTAGE

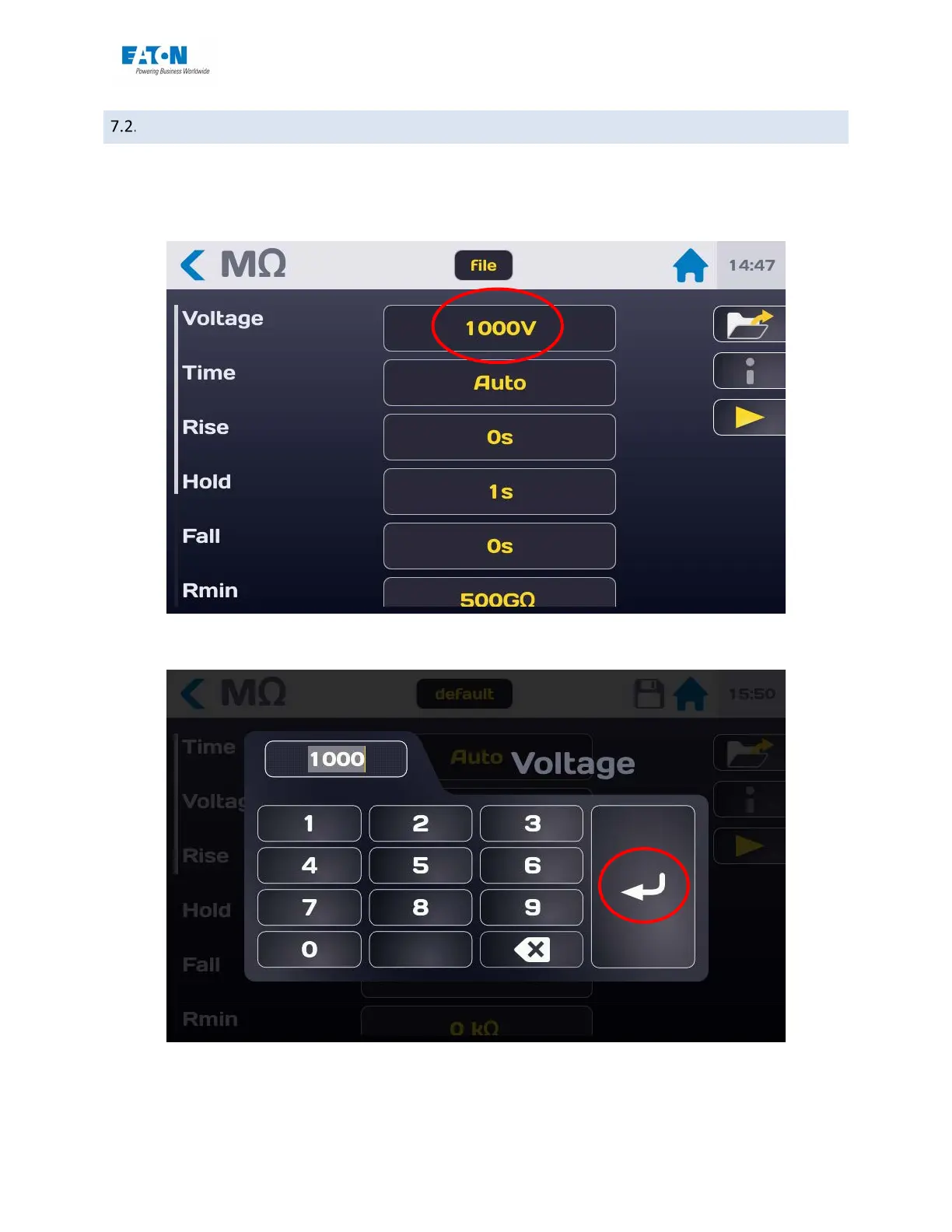

From the settings menu or by the voltage shortcut key at the bottom of the measuring screen
press the active area of the voltage line:
To obtain the following screen:
Enter a voltage between 20 and 1,000 VDC; if the value entered is outside the permitted limits it
is shown in red. Press the enter key to validate the entry and return to the previous menu.
