XS series operating manual
XS user manual v0.55 - 104 -

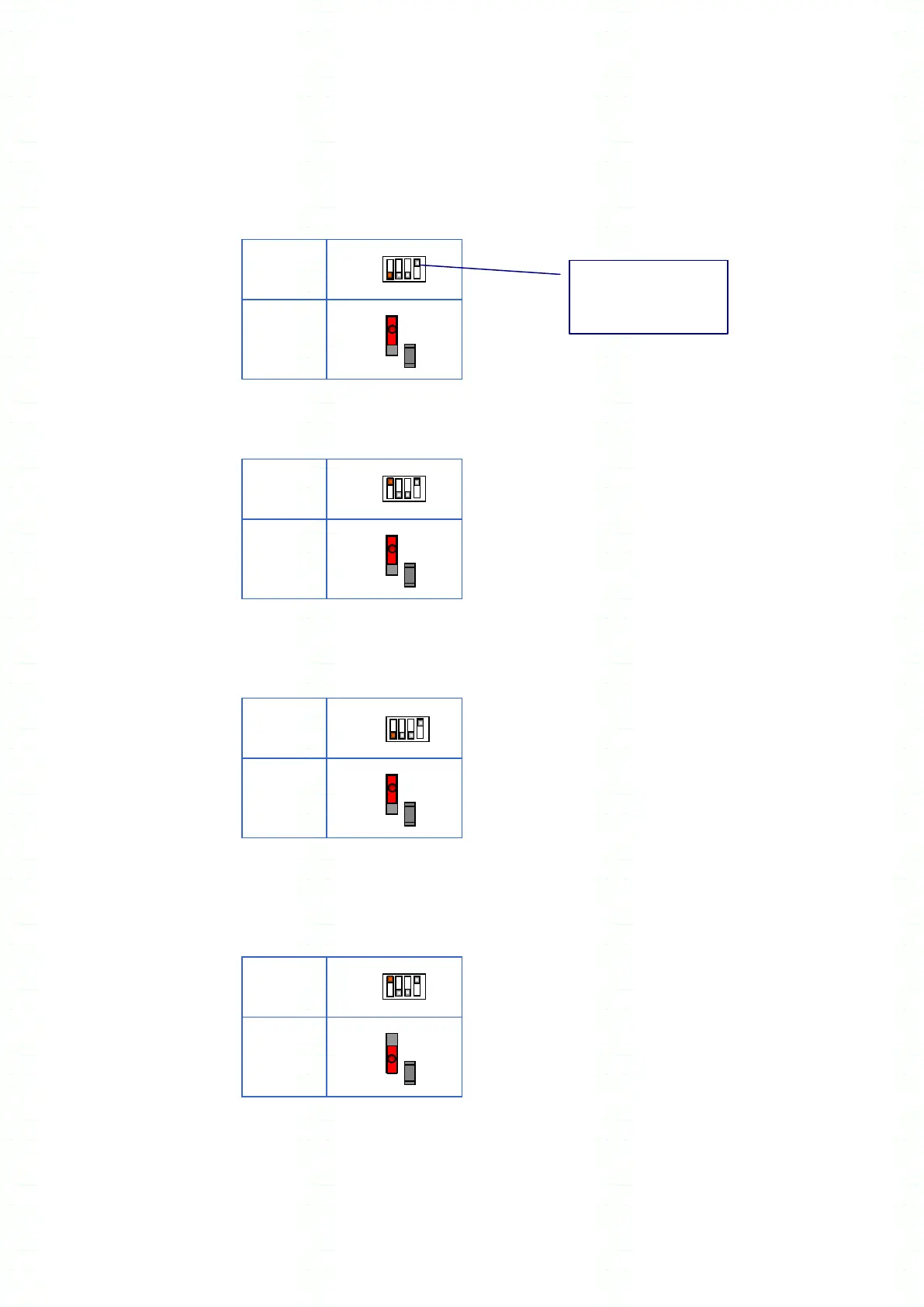

configurations
MEGOHMMETER : 1 output for the linear value of the resistance in a range
1 output for the value of the range
SW5
SW4
MEGOHMMETER 1 output for the logarithmic value of the resistance
1 output not used
SW5
SW4
DIELECTRIC STRENGTH TEST : 1 output for the high voltage value
1 output for the leakage current
SW5
SW4
DIELECTRIC STRENGTH TEST : 1 output for the high voltage value
1 input for the high voltage
SW5
SW4
ON
OFF
ON
OFF
ON
OFF
ON
OFF
SW5-4 operate the
0-10V feature
