XS series operating manual
XS user manual v0.55 - 45 -

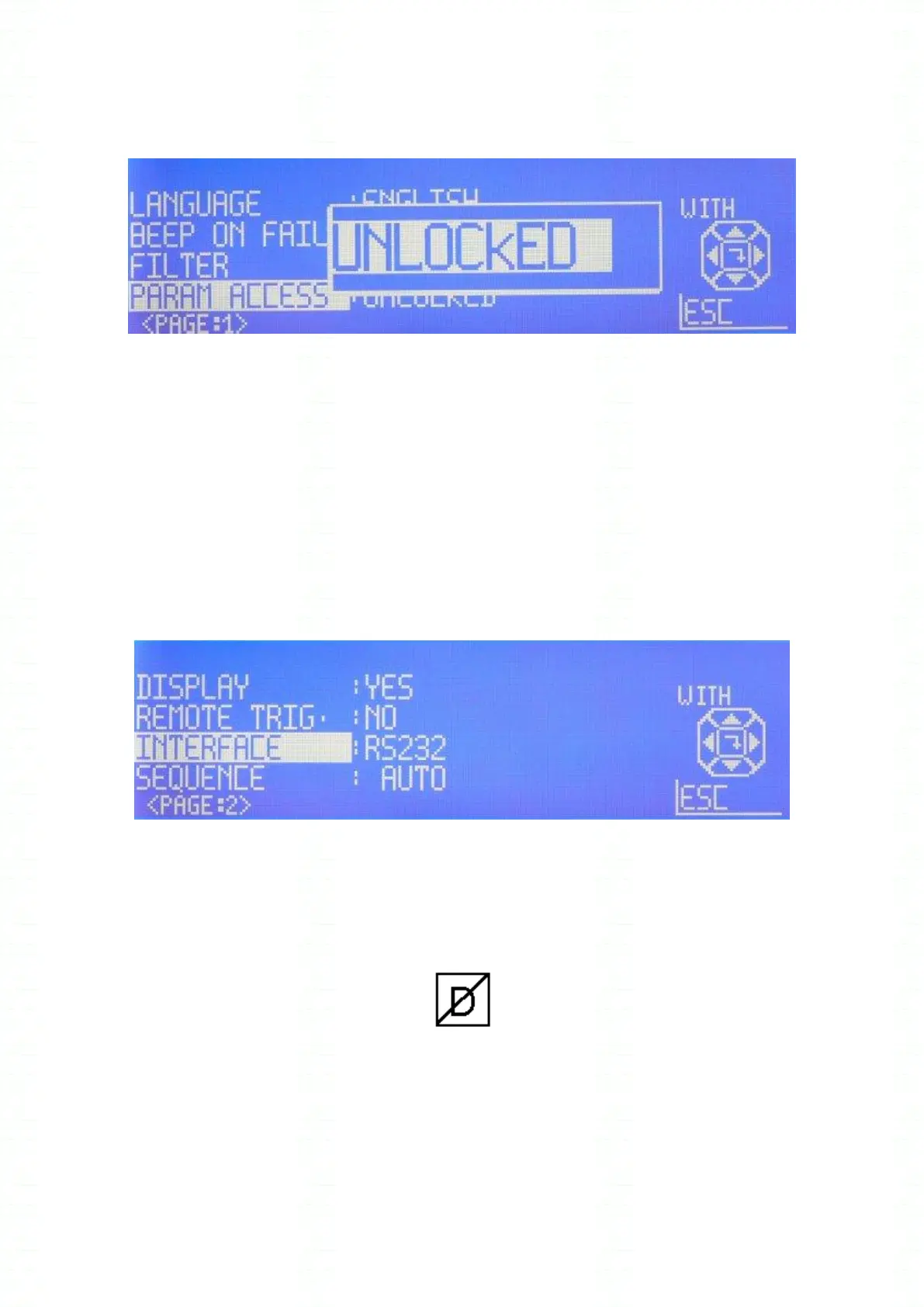

If the password is correct, the following message will be displayed :
Fig 6.7
and you can select the security level : UNLOCKED, READ ONLY, LOCKED
If you loose your password, please contact our service department or your distributor.
Sefelec service department : +33 (0)1-64-11-83-48
Measurement display
Press on the UP or DOWN arrows to select the next setup menu page .
Fig 6.8
The DISPLAY function allows inhibiting the display of the digital measurement results, only the PASS-
FAIL result is valid. This mode is especially interesting when controlling the unit by an external system
(RS232C, IEEE488 or PLC) because it allows reducing the test times.
When operating this mode, a fixed drawing is displayed in the measurement result window:
