XS series operating manual
XS user manual v0.55 - 61 -
Maximum current and variation current limit : IMAX + I
This mode combines the IMAX mode and the Delta I mode.
Without detection
In this mode there is no current monitoring.
There is no output high voltage adjustment according to the load.
Minimum current limit : IMIN
In the above detection modes it is possible to set a minimum value of current flowing through the
specimen under test to insure that the specimen is correctly connected.
This mode is independent from the breakdown detection modes.
To set the detection mode :
Move the reverse video line in front of the DETECTION line with the UP/DOWN arrows keys.
Press on the RIGHT arrow or ENTER key
Display shows:

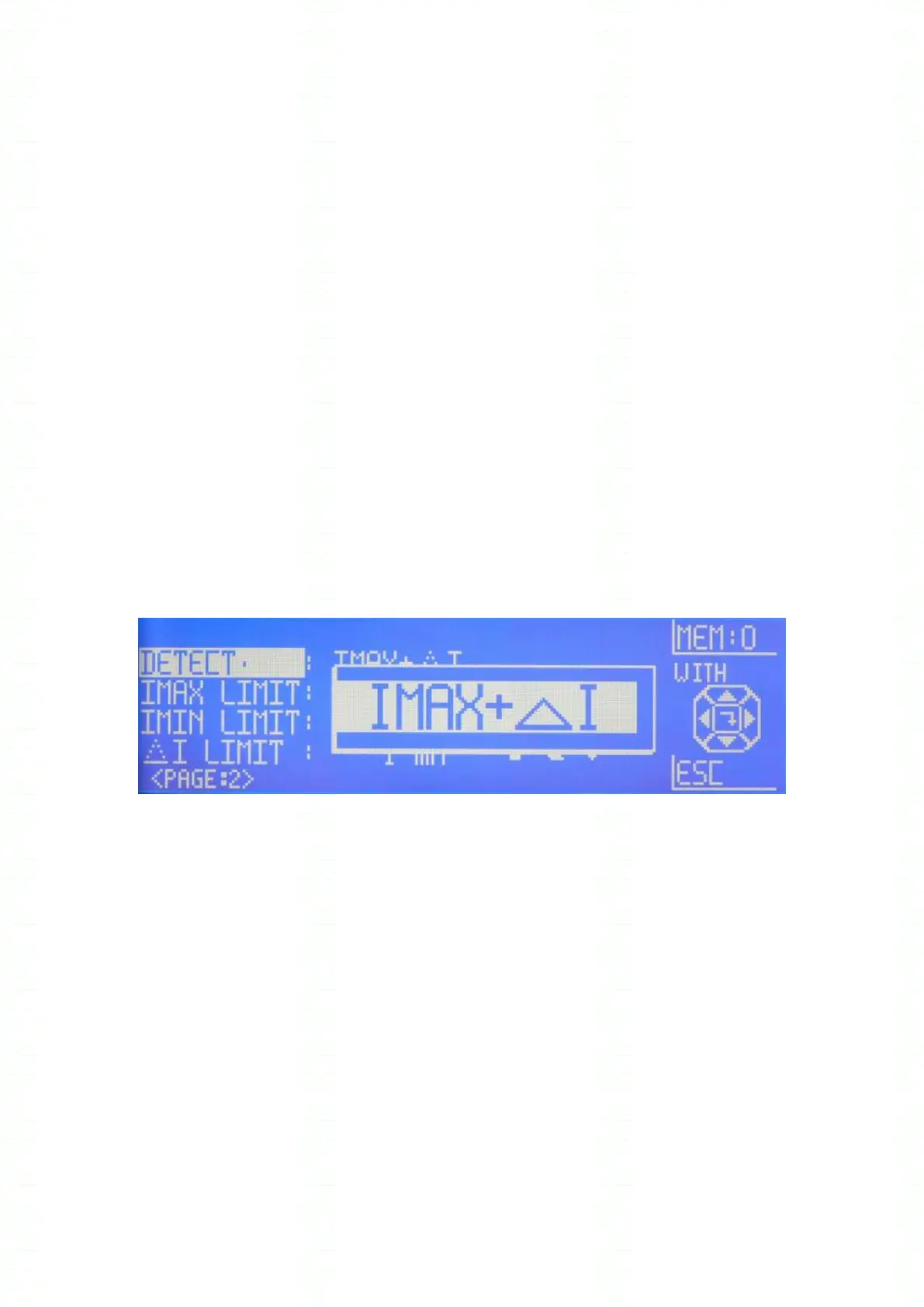

Fig 8.7
With the UP/DOWN arrow keys scroll the various detection modes available :
-I, IMAX+-I, IMAX, OFF, FIMAX+I, FIMAX......
Enter the selected mode with the ENTER key.
