XS series operating manual
XS user manual v0.55 - 59 -
To set the RISE and FALL times
Move the reverse video line in front of the RISE or FALL line
Press on the RIGHT arrow or ENTER key

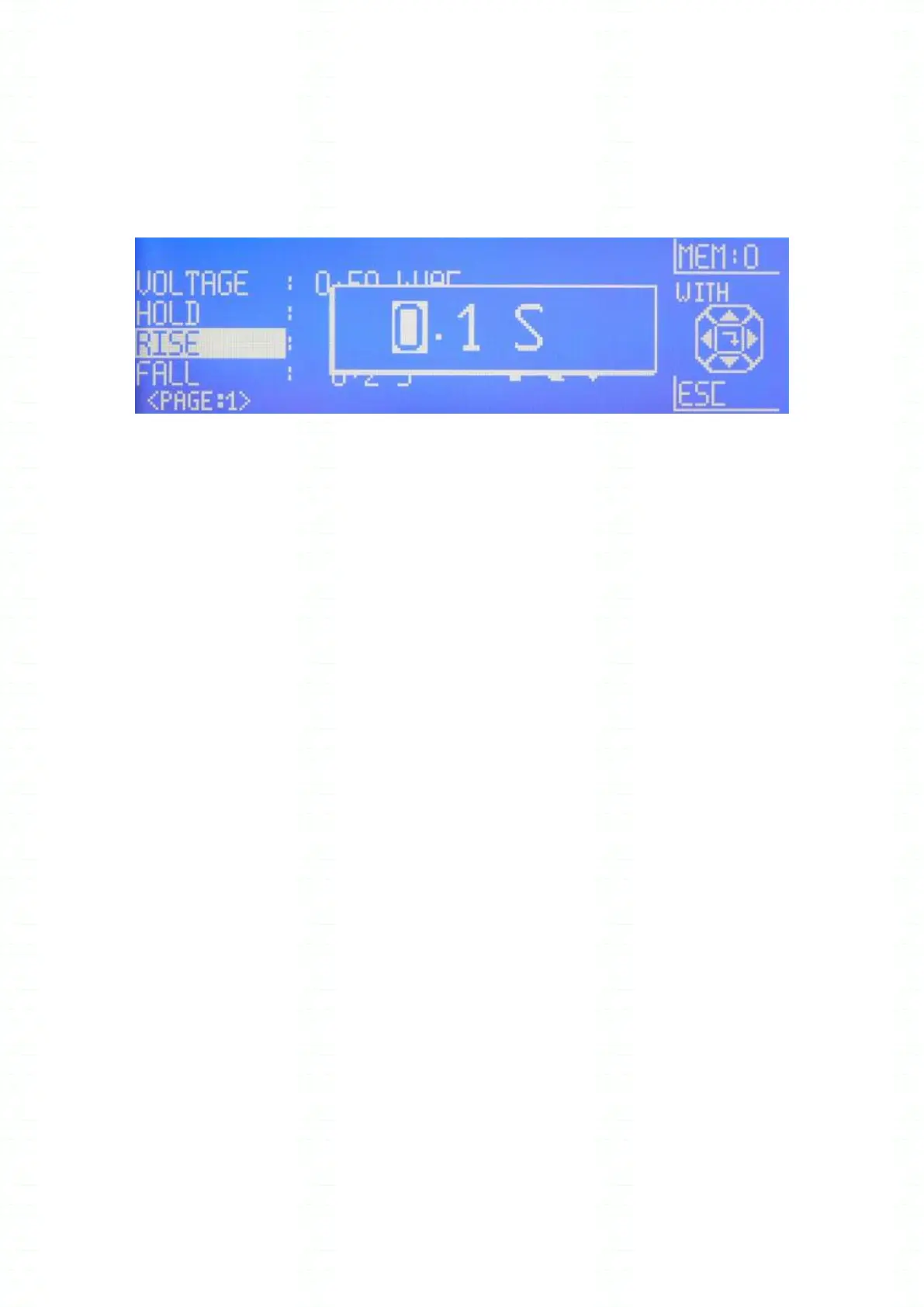

Display shows :
Fig 8.5
Select the number to be modified by moving the cursor with the RIGHT/LEFT arrow keys
Increase or decrease the value with respectively the UP and the DOWN arrow keys (0 1 2 3 4 5 6 7 8
9. 0 1 2 3 etc)
Repeat operation for all the numbers if necessary
Enter the time with the ENTER key
If necessary move the cursor on the unity area and scroll the items with the UP and DOWN arrows
and then enter with the ENTER key.
REMINDER
For devices other than SXS16, the RISE and FALL times are adjustable from 0 to 1 sec. by 0.1
sec. Steps and from 1 to 999 sec. by 1 sec. Step.
For the SXS16 RISE and FALL times, please refer to the chapter “Dielectric strength test 10VA”.
