XS series operating manual
XS user manual v0.55 - 39 -
Connection to a specimen
Connection for the insulation resistance measurement and dielectric strength test
(any model)

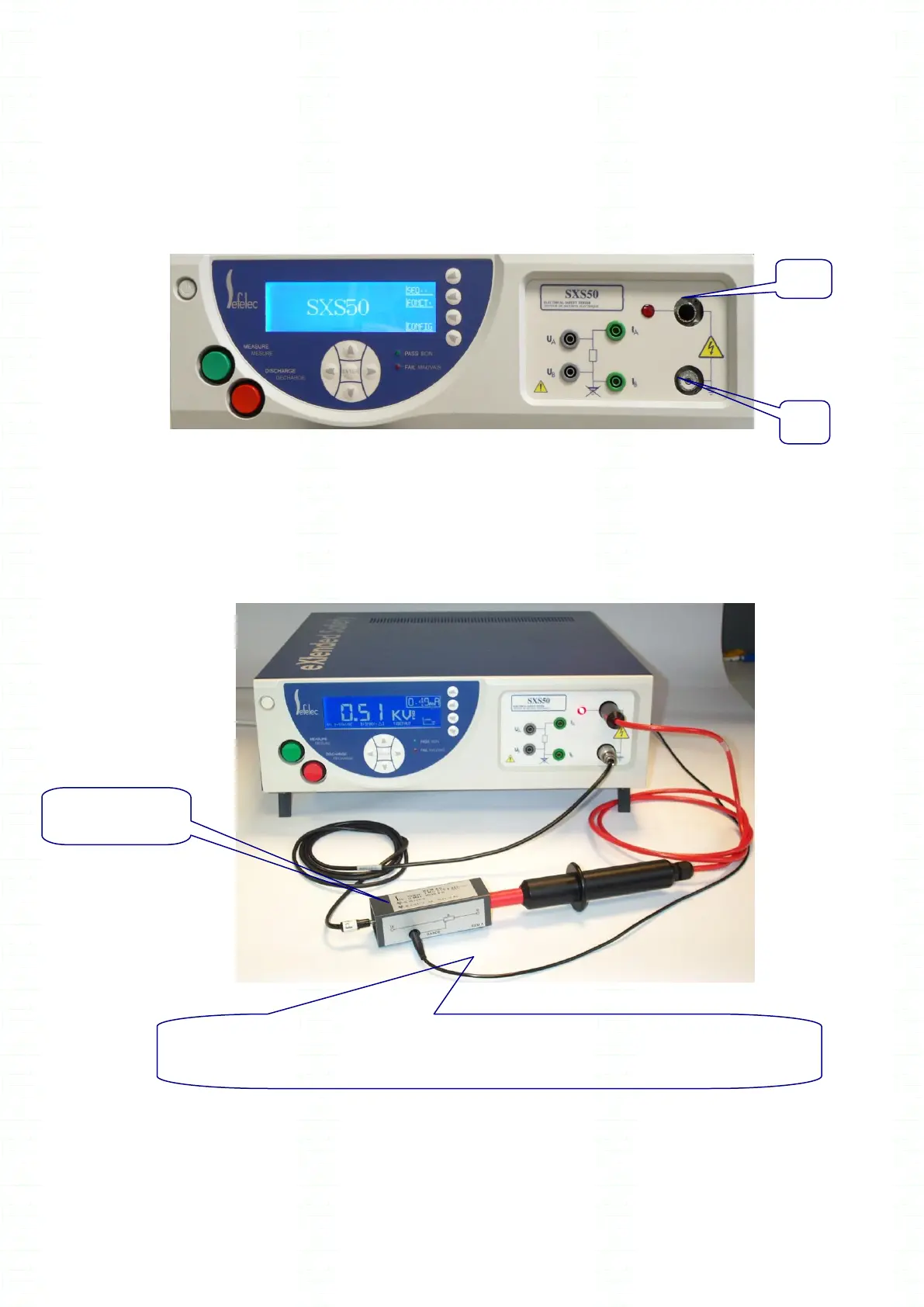

Fig 5.5
Connect the measurement probe (TE54, ...) on the B1 connector
Secure the probe by tightening the knurled plastic ring
Proceed the same way for the return probe (CO175) on the B2 connector.
Connect the specimen to be tested as shown on the picture:
Fig 5.6
Guard cable. Only necessary in Insulation resistance measurement for high
values ( R > 100 Gohms). WARNING : the voltage can reach -1000VDC
