EBARA A07V - Moving Method; Detailed Specifications

(4)

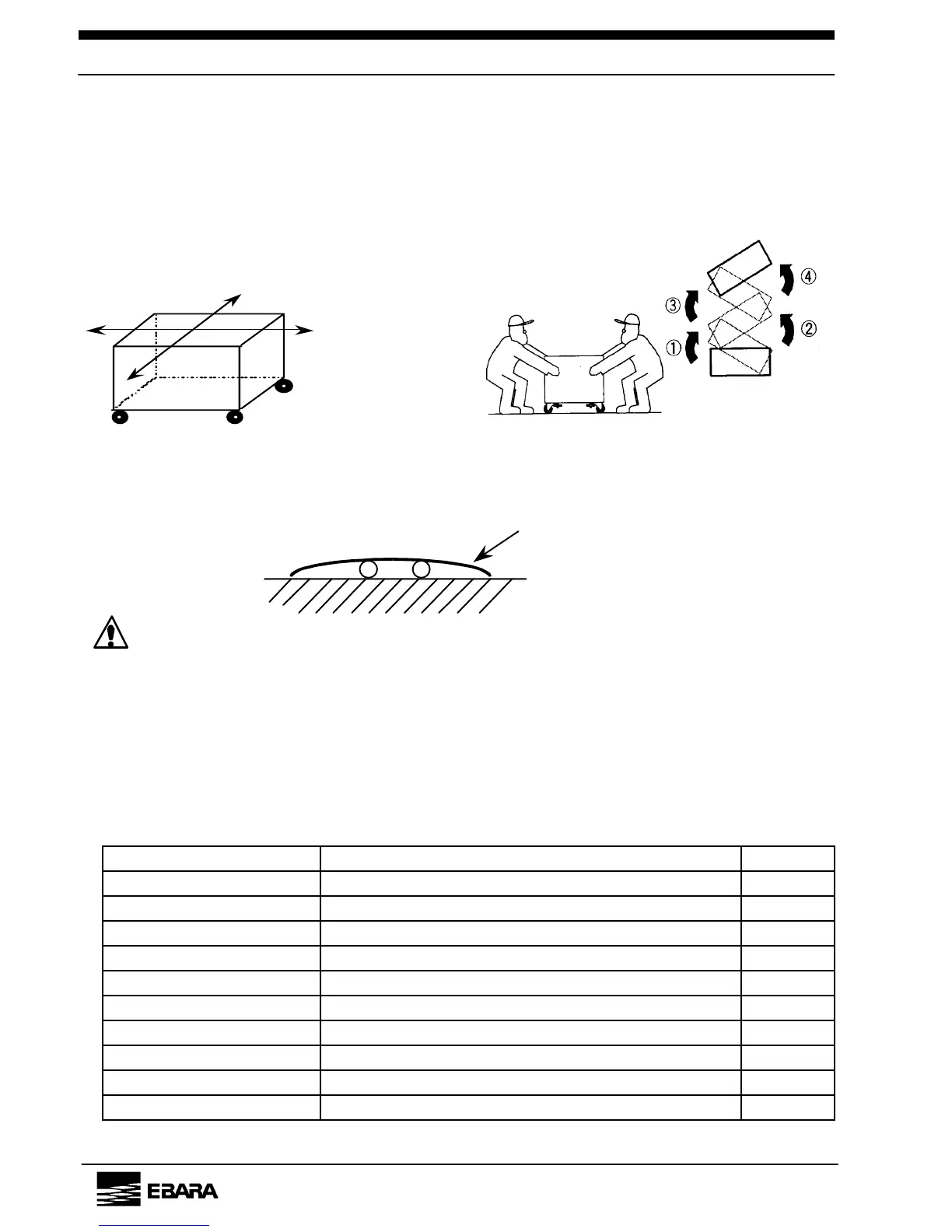

3.3.2 Moving Method
Move pump slowly by pushing eyebolt along the long axis of the pump (Direction A). Keep
toes and fingers away from moving wheels. If placing the pump in a corner or narrow space
requires moving it along the short axis (Direction B), two persons should “walk” the pump
over by alternately pushing the ends as shown below.
A
B
To move the pump across cracks or joints in the floor, spread a steel plate or similar device,
which can sustain the pump’s weight, over the discontinuity. At least two persons, using
great caution, should move the pump.
Steel Plate
DANGER
If, when moving a pump, it loses balance and starts to tip over, do
not attempt to stop it. Get away from the pump immediately and
let it fall.
3.4 Detailed Specifications
Refer to the following tables and figures for detailed specifications, size, and pump
performance.
List of Tables and Figures
Category Contents Page
Table 3.1, 3.2 Specification 5,6
Outline Drawing 1 A70W 7
Outline Drawing 2 A30W 8
Outline Drawing 3 A25S 9
Outline Drawing 4 A10S 10
Outline Drawing 5 A07V 11
Figure 3.1 Performance Curve (A70W, A30W) 12
Figure 3.2 Performance Curve (A25S, A10S) 13
Figure 3.3 Performance Curve (A07V) 14
Figure 3.4 System Flow 15
EBARA Corporation
